Truss Clamp

Looking to mount your Club Cannon Jet, or Power Pack from trussing?

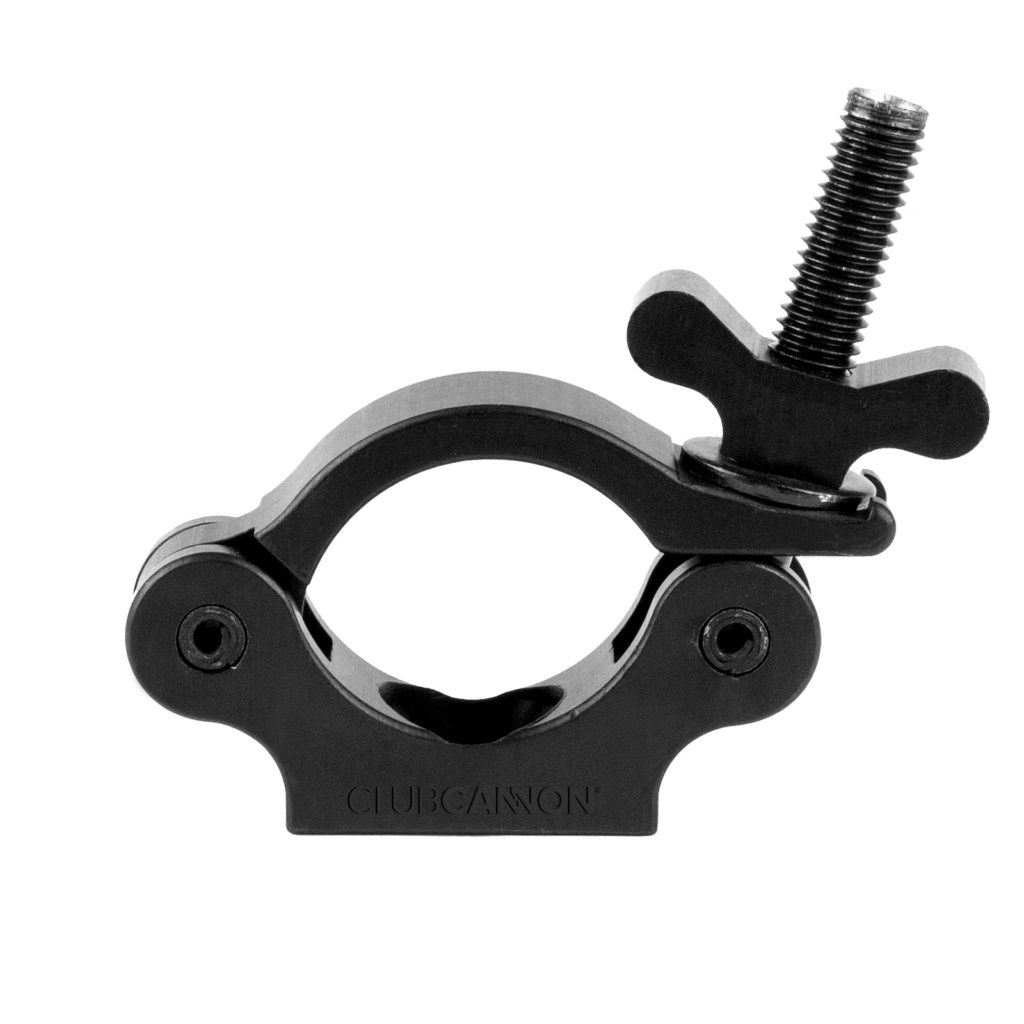

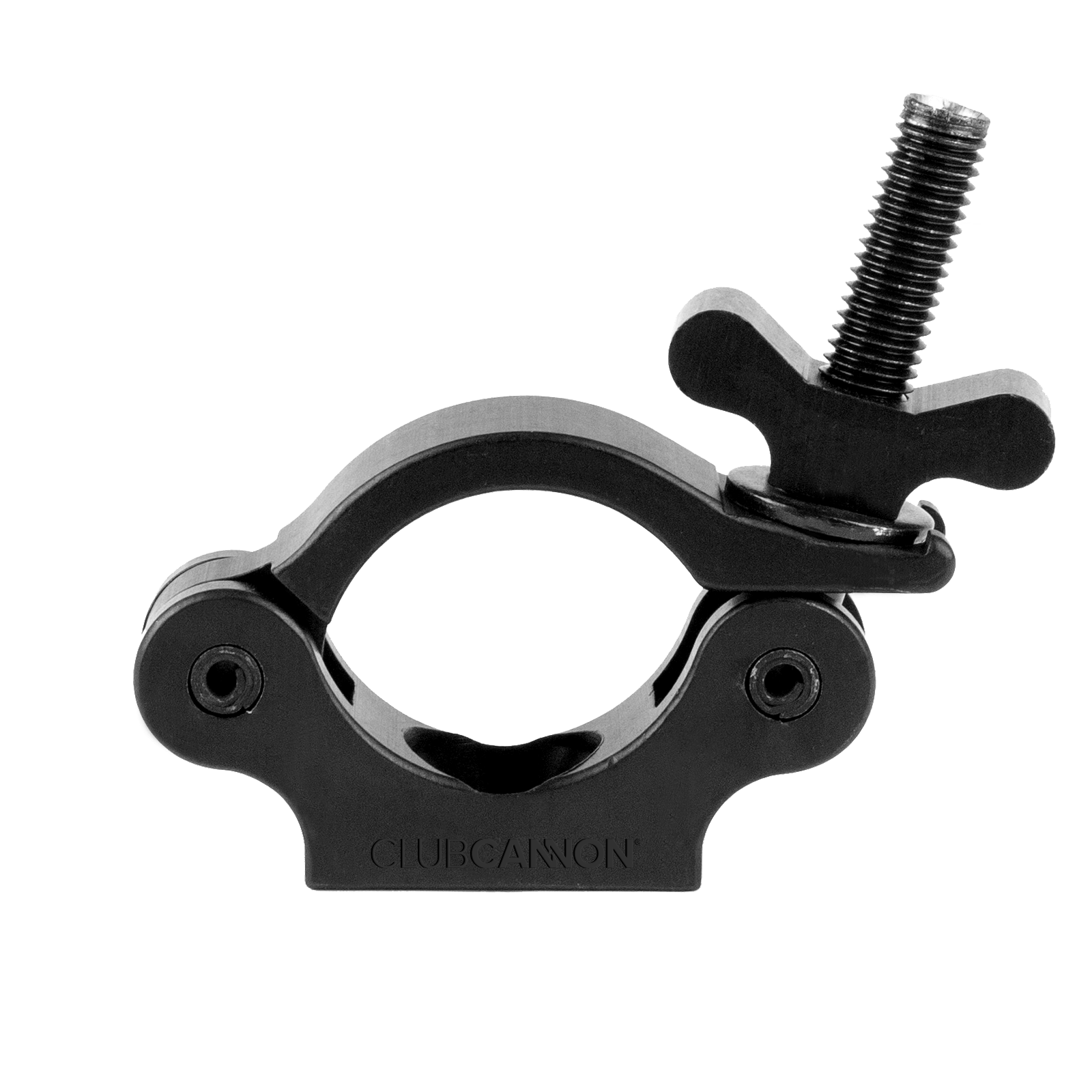

The Clamp is a low profile option. It is half the size of a standard Clamp and weighs 30% less.

This Clamp will fasten from 1-1/4" pipe (1.66 OD) to 2.050 OD Truss Tube. It has a wide wing nut for easy fastening of the coupler to the pipe or tube as well as a hex pocket for 1/2" Flat Head Countersunk Bolt.

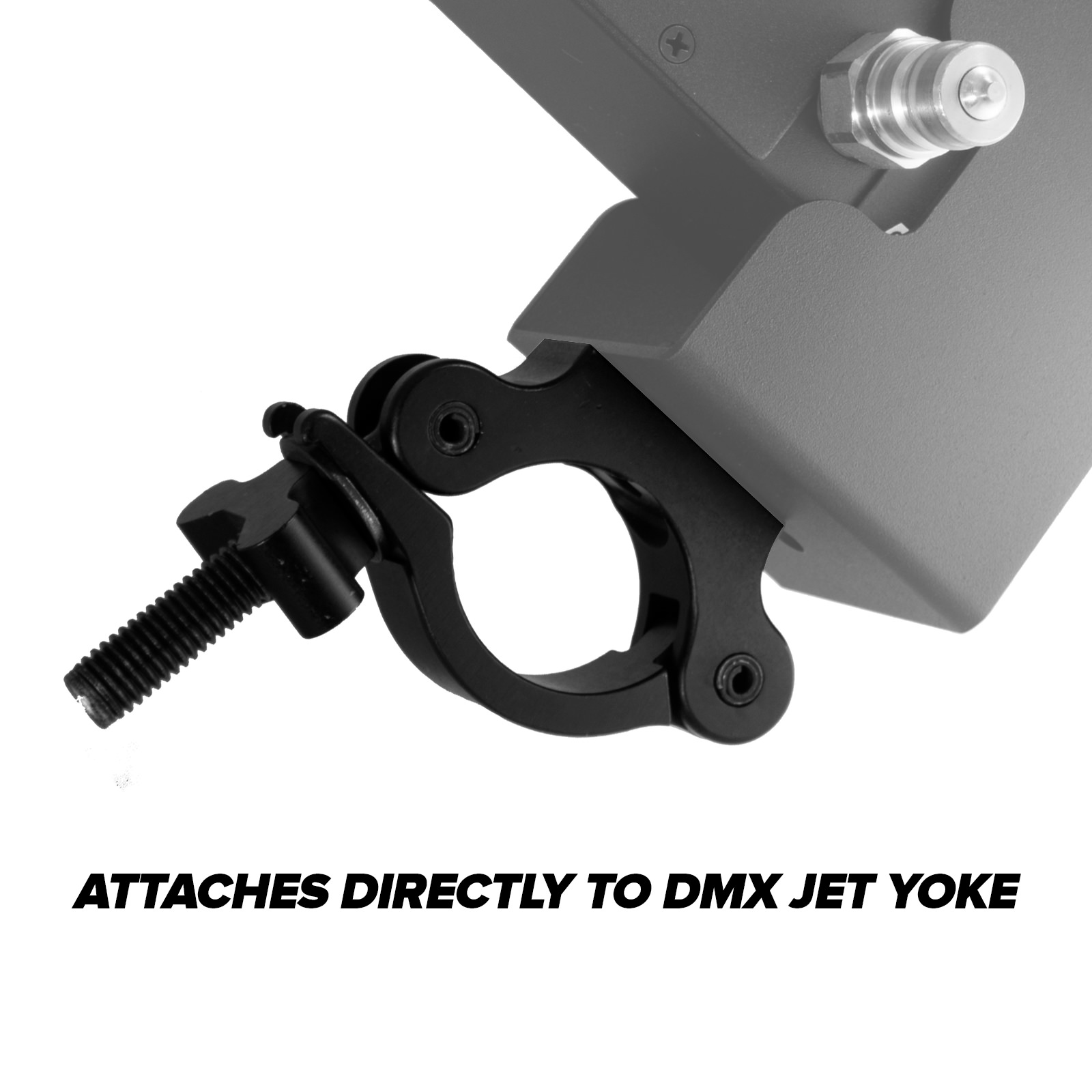

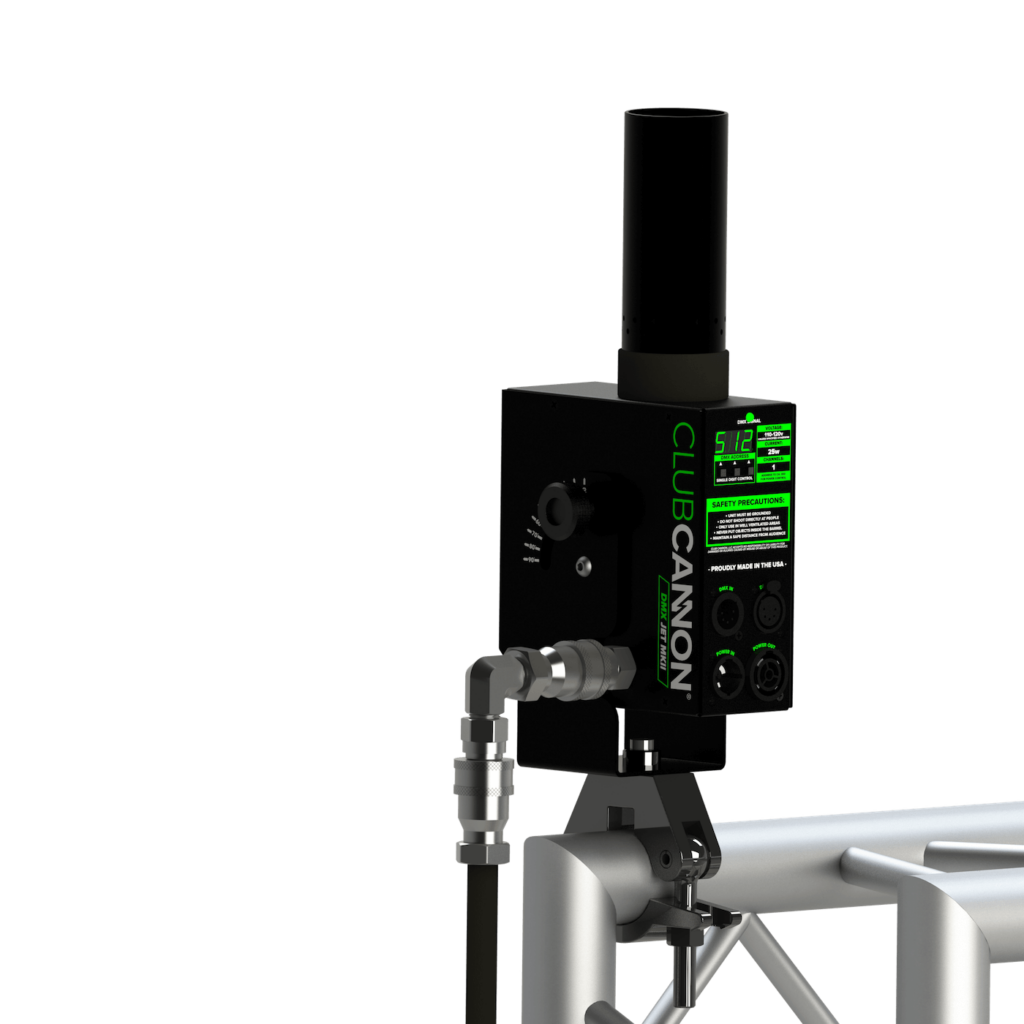

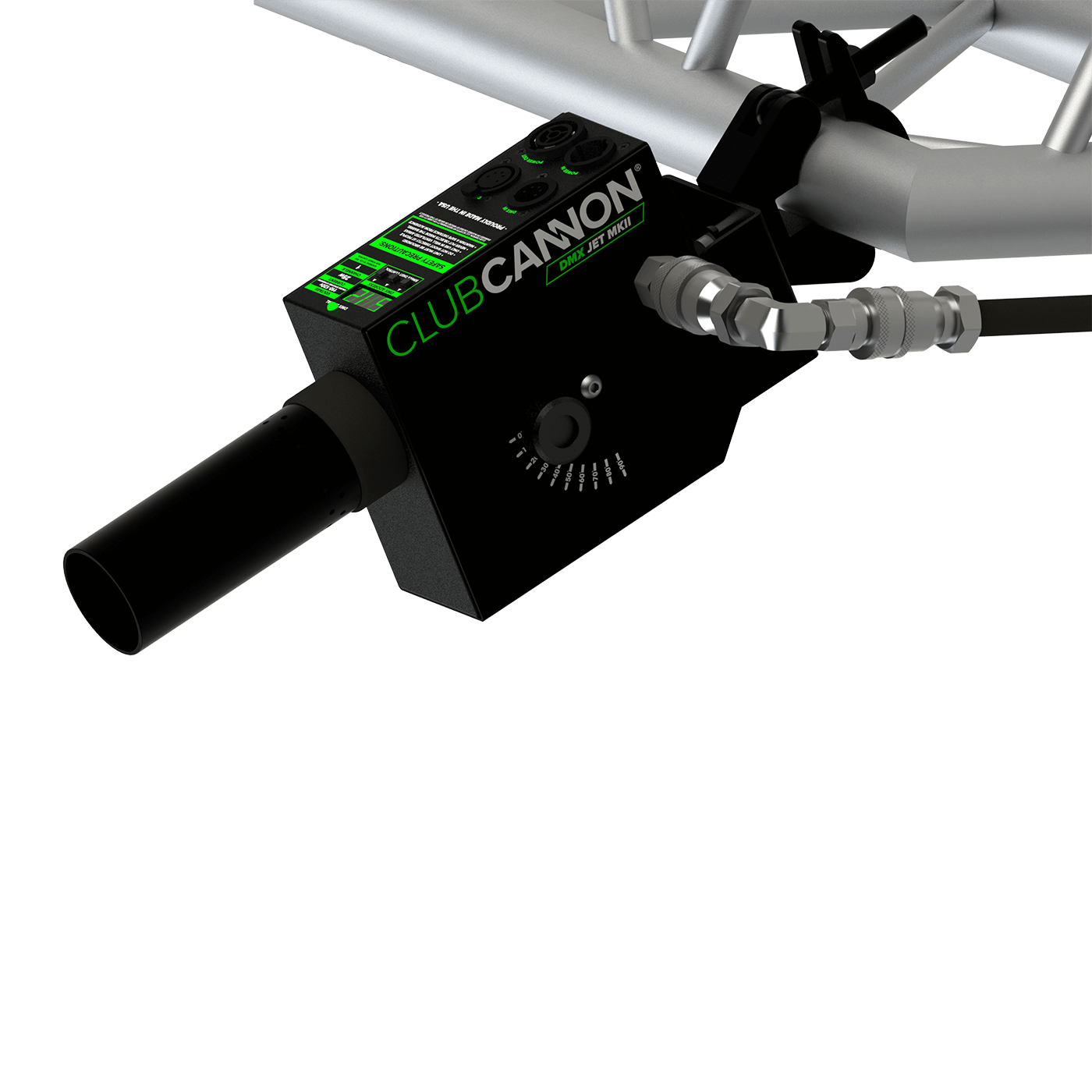

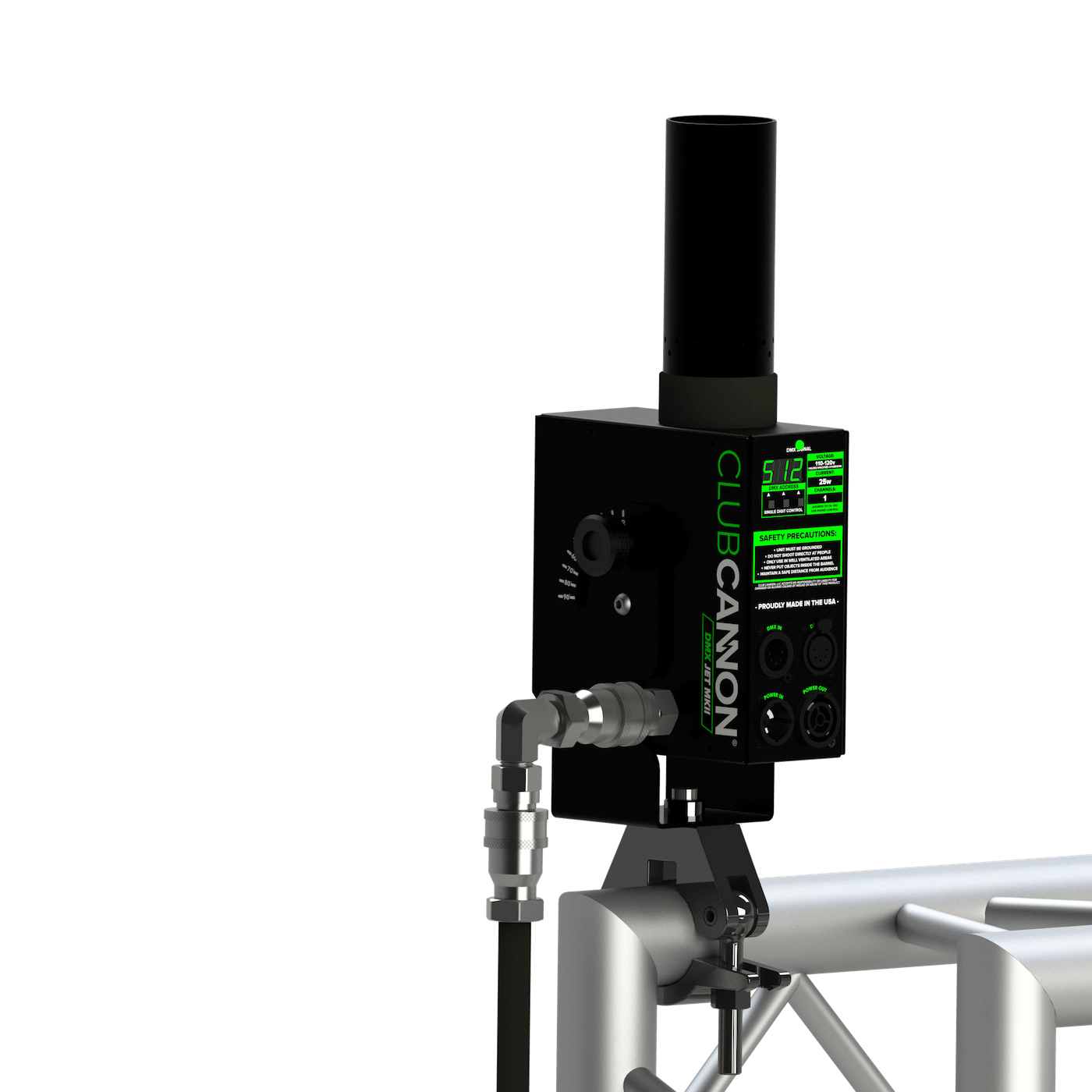

Club Cannon products are designed to accept this clamp with ease. This clamp can thread directly into the Power Jet body, DMX Jet yoke bracket, Confetti Blower yoke bracket, or Power Pack mounting bracket.

Minimum Fastening Size: 1.25" pipe, 1.66 OD pipe

Maximum Fastening Size: 1.5" pipe, 1.90 OD pipe, 2.050" O D Truss Tube

Working Load Limit: 500lbs

Includes:

  • Clamp

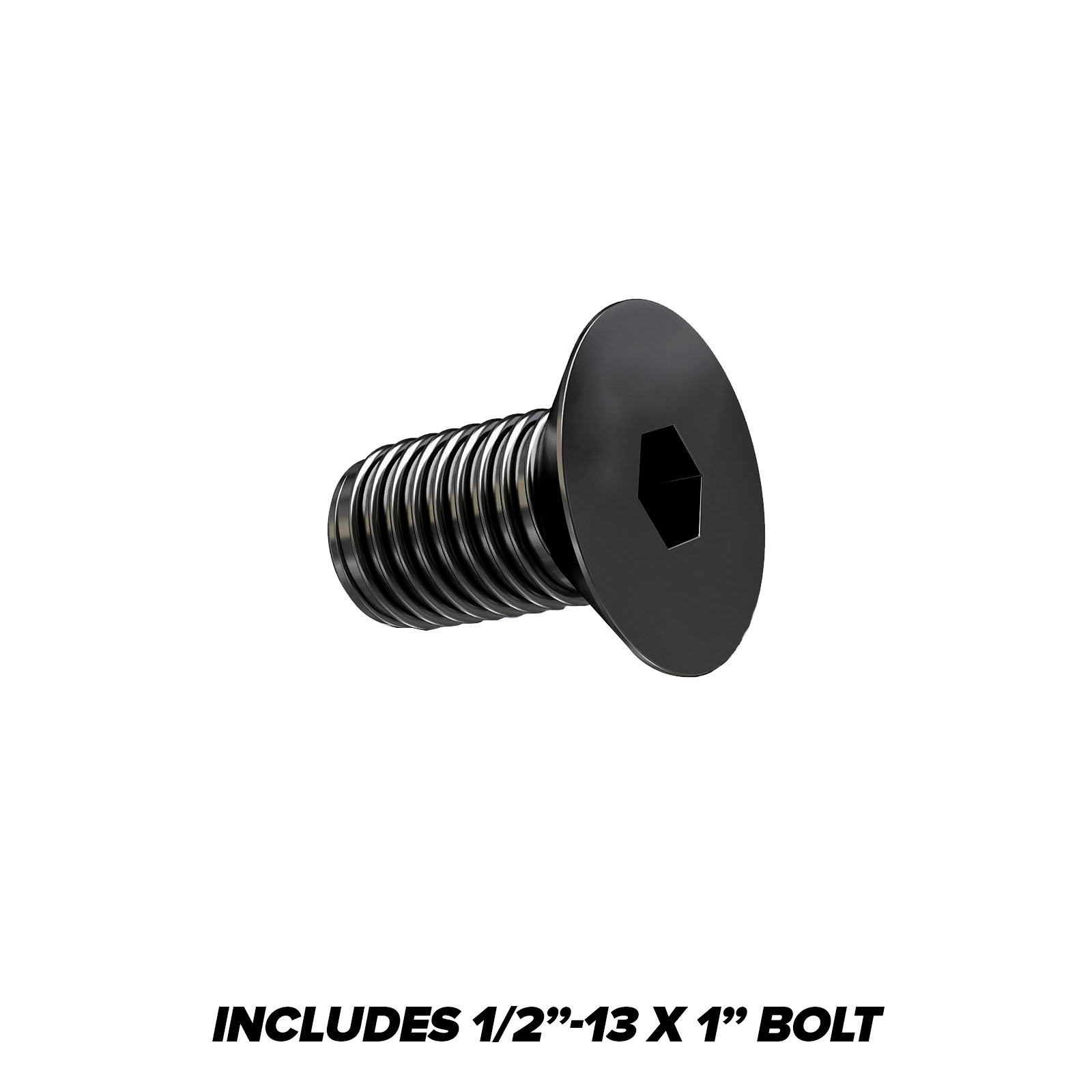

  • 1" Bolt
  • Washer

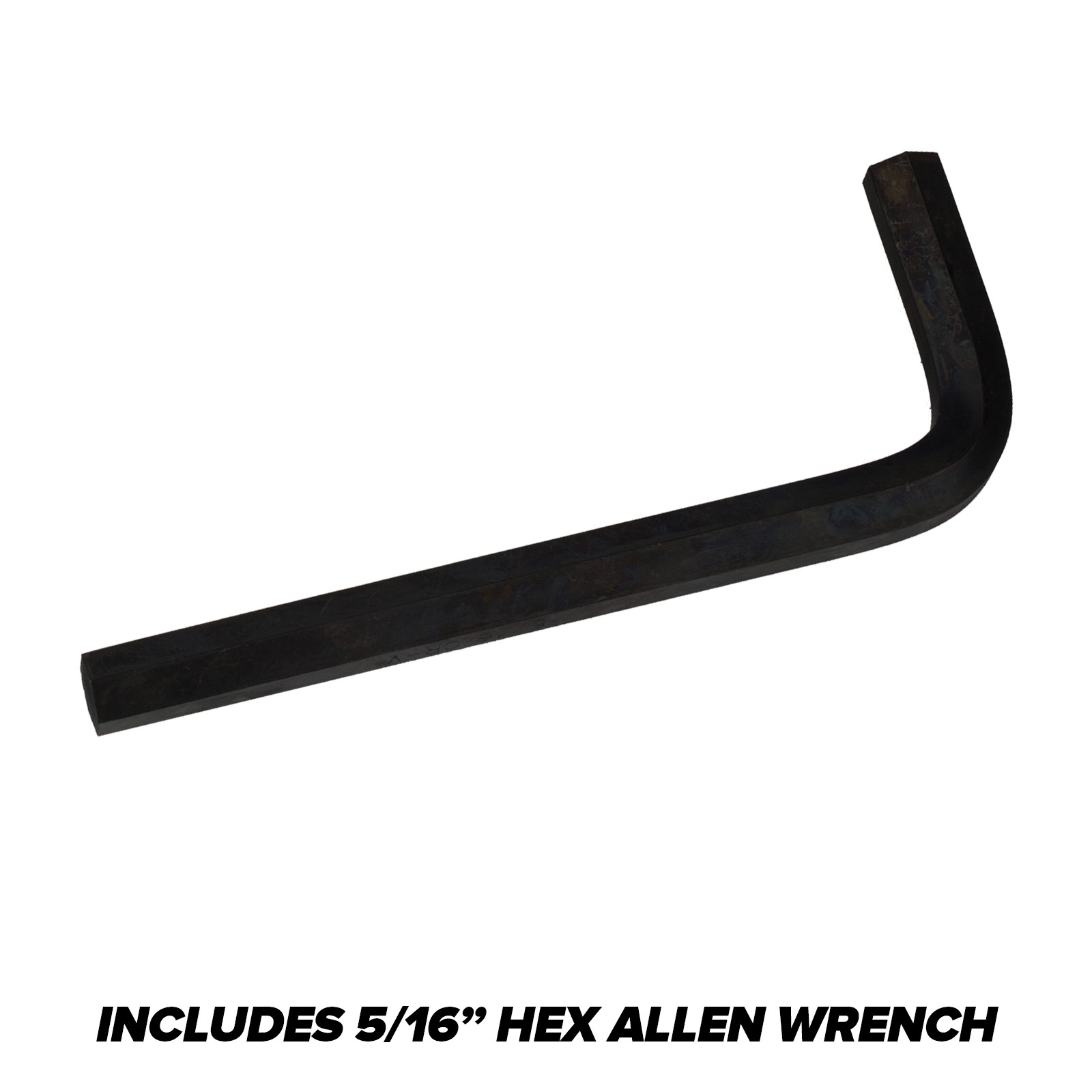

  • 5/16" Hex Key
$0.00
Configure
  • In order to include the correct length bolt, please select which product you plan to use this clamp with.

$0.00

The Club Cannon can be used with any Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). The Club Cannon will not operate properly with a standard CO2 tank, so you must be sure you are using a Siphon Tank.

CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you Club Cannon. You will get approximately 1-2 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: info@clubcannon.com

Common suppliers of CO2 Tanks are PRAXAIR and AIRGAS. Both companies have branches nationwide. Use the links below to find a supplier near you.

Use THIS LINK to find the nearest PRAXAIR location.

Use THIS LINK to find the nearest AIRGAS location.

The estimates below reflect how long your package will take to arrive.

We ship Monday-Friday. Shipping cutoff time is 3PM, PST.

West Coast. 1-2 Business Days

Mid-West 3-4 Business Days

East Coast: 4-5 Business Days

International: 3-5 business Days

If you need your items sooner, expedited shipping options will be displayed once your shipping address has been entered.

Our international CO2 tank fitting is automatically installed with products shipped outside of USA, Canada, Mexico & South America. International shipments typically arrive in 3-5 business days. If you have questions please email us.

All Club Cannon products come with a 1 year parts and labor warranty. If you need to make a warranty claim, please email us. More information about our warranty policy can be found on the Terms and Conditions page.
