Cryo Controller
Looking for a simple solution to trigger your special FX system, and track your CO2 usage?

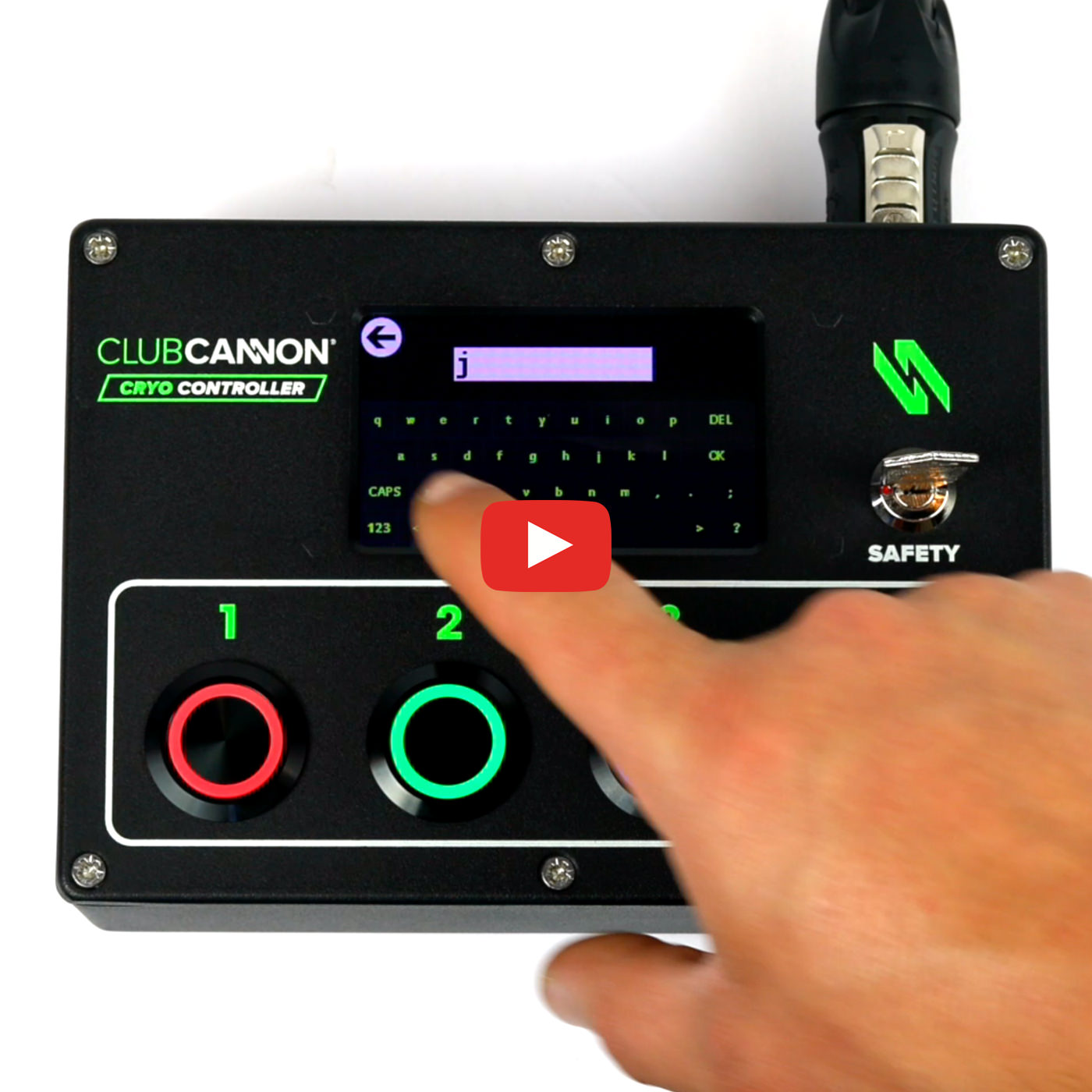

The Club Cannon LCD DMX Cryo Controller is the first of its kind. This unit will allow you to track your CO2 use, taking the guess work out of tank changeovers. A plug and play unit, designed to be used with any CO2 Jet or special FX product with DMX control. Simply link all of your products together with DMX cables, plug in to the controller, and you are ready to go. There are several modes pre-programmed into the controller to suit the majority of FX products. These modes can be changed on the fly, using the built in touch screen.
Includes:
LCD Cryo Controller
6FT Neutrik True1 Power Cord
2 Keys
Out of stock
-
The first of its kind.
The Club Cannon LCD DMX Cryo Controller ships pre-programmed with several modes, each designed for specific CO2 Jet models and setups. Each mode is able to send the necessary DMX signal to your product, and track the CO2 usage of the DMX channel that controls the solenoid valve. To change modes, simply use the touch screen. To track CO2 usage, set the amount of jets & tanks in your rig, and have an accurate gauge showing how much liquid CO2 is remaining in your tanks. Click the tabs below to get more information on the pre-installed modes.
Features:
- Black aluminum enclosure
- LCD touch screen
- CO2 usage tracking
- Selectable tank size (20lb, 50lb, 75lb)
- UV fluorescent silk screen
- 4 LED ring illuminated buttons
- Key lock switch
- 3 pin or 5 pin DMX output
- Neutrik True1 power inlet
- Color mixing capability (LED modes)
- Slim profile
- 100v-240v operation
- Made in the USA!
Notes:
- The controller will store the tank levels when powered off. If you use the same tanks for multiple events, this allows for seamless operation.
- Touch screen input will be disabled when the key is in the “on” position. Additionally, when the key is turned on, the screen will always jump directly to your tank monitor screen.
- Keys are required for the controller to engage output. Tank values can only be reset when the key is in the “off” position.
- Software updates are available for customers with previous firmware versions, email us.
This mode is used for Club Cannon DMX Jets, or Power Jets & Power Pack.
Address your Jets or Power Packs to DMX CH 1, 2, 3 & 4.
Triggers DMX channels 1, 2, 3, 4. Key locks out all channels.
CO2 Meter tracks all 4 channels separately.
Tank values can be reset individually.
This mode is used for Club Cannon CO2 Jets utilizing the daisy chain CO2 feature.
Address your Jets or Power Packs to DMX CH 1, 2, 3 & 4.
Triggers DMX channels 1, 2, 3, 4. Key locks out all channels.
CO2 Meter tracks all 4 channels, but displays on a single gauge.
This mode is used for Club Cannon Jets with the optional LED Attachment.
Address Jets to CH1, LEDs to CH2.
Triggers DMX Channels 1+2+3, 1+2+4, 1+2+5, 1
Key locks out channel 1, which allows you to use the LEDs without triggering the CO2.
CO2 Meter tracks channel 1, so using the buttons to trigger LEDs separately does not affect tank value.
Buttons can be combined to trigger extra colors. Red, green, blue, white, amber, UV, cyan, color scroll & white strobe.
This mode is used for legacy Club Cannon Easy Angle LED Jets.
Address Jets to DMX CH1.
Triggers DMX Channels 1+2+7, 1+3+7, 1+4+7, 1+2+3+4+7
Key locks out channel 1, which allows you to use the LEDs without triggering the CO2.
CO2 Meter tracks channel 1, so using the buttons to trigger LEDs separately does not affect tank value.
Buttons can be combined to trigger extra colors. Red, green, blue, white, yellow, purple & cyan.
This mode is used for off brand CO2 Jets that require 2 channels to fire.
Address Jets to DMX CH1, 3, 5 & 7.
Triggers DMX channels 1+2, 3+4, 5+6, 7+8. Key locks out all channels.
CO2 Meter tracks all 4 channel sets separately.
Tank values can be reset individually.
This mode is used for off brand LED CO2 Jets.
Address Jets to DMX CH1.
Triggers DMX Channels 1+2, 1+3, 1+4, 1+2+3+4+6 (strobe)
Key locks out channel 1.
CO2 Meter tracks channel 1.
This mode is customizable, for use with products outside the scope of standard modes.
20 configurable DMX channels.
Channels can be assigned to any of the 4 available buttons.
Key locks out all channels.
Timer tracks all button presses (single timer).
VERSION 1.3
Released 12/01/20
IDs displayed on boot: V3.07, V1.5.23
- Added custom mode
- Added timer display option to homescreen
- Added quick refill option for timers
- Updated interface design
VERSION 1.2
Released 12/05/18
IDs displayed on boot: V1.03, V2.6.16
- Added feature to change tank size.
- 20LB, 50LB, 75LB tank sizes now supported.
VERSION 1.1
Released 11/13/18
IDs displayed on boot: V1.03, V2.6.14
- Added feature to name outputs on 4 Zone & 2CH 4 Zone modes
- Added “Mode Info” button that displays addressing requirements for each mode
- Added support for popular vertical fog machines
- Chauvet Vesuvio II, ADJ Fog Fury Jett, Chauvet DJ Geyser
VERSION 1.0
Released 10/22/18
IDs displayed on boot: RC V1, V2.4
- Initial release
Club Cannon products require a Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). Products will not operate properly with a standard CO2 tank, so you must be sure you are using a Siphon Tank.
CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you product. You will get approximately 1 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: support@clubcannon.com
Common suppliers of CO2 Tanks are MATHESON, LINDE and AIRGAS. These companies have branches nationwide. Use the links below to find a supplier near you.
