Club Cannon DMX Co2 Jet (MKII)

Sale!

Club Cannon DMX Co2 Jet (MKII)

$1,199.99 $999.99

Includes:
Co2 Jet, 15’ Co2 Hose, Co2 Tool, 5 Extra Washers, Instructions.

Cut sheet available upon request.

Co2 Jet Manual

  • CONFIGURE YOUR CO2 JET

    DMX In / Out:

    This product comes standard with 3 pin Neutrik input & output for DMX control. If you would like to upgrade to 5 pin DMX, select the option below.

    • 0 $
    • 30 $

    Add an LED Attachment:

    • 0 $
    • 299.99 $

    Clamp Options:

    This product comes standard with a 4 pound steel base plate for ground use. If you would like to replace the base plate with a truss clamp, or purchase both, select your options below.

    • 0 $
    • 25 $

    Upgrade Hose Length:

    This product comes with a 15 foot hose. If you would like to upgrade to a longer hose, select your option below.

    • 0 $
    • 50 $
    • 100 $
    • 175 $

    *Voltage:

    Customers in USA, Canada & Mexico will want to select 110v. Other international customers will want to select 220v.

    Additional Options:

    Braided Hose Sleeve: Adds an extra layer of abrasion resistance to the Co2 hose. Also improves the appearance and handling.

    • 25 $

Description

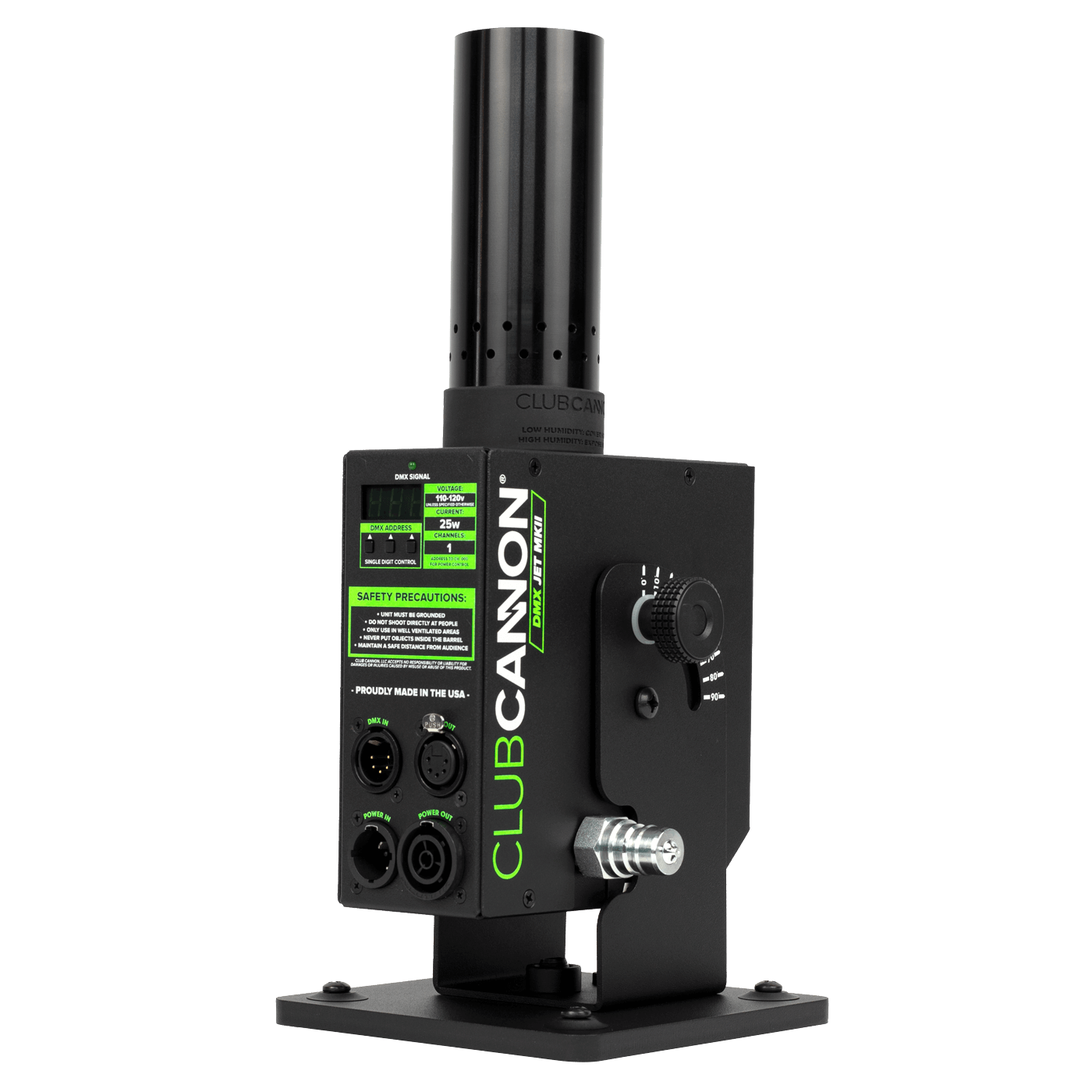

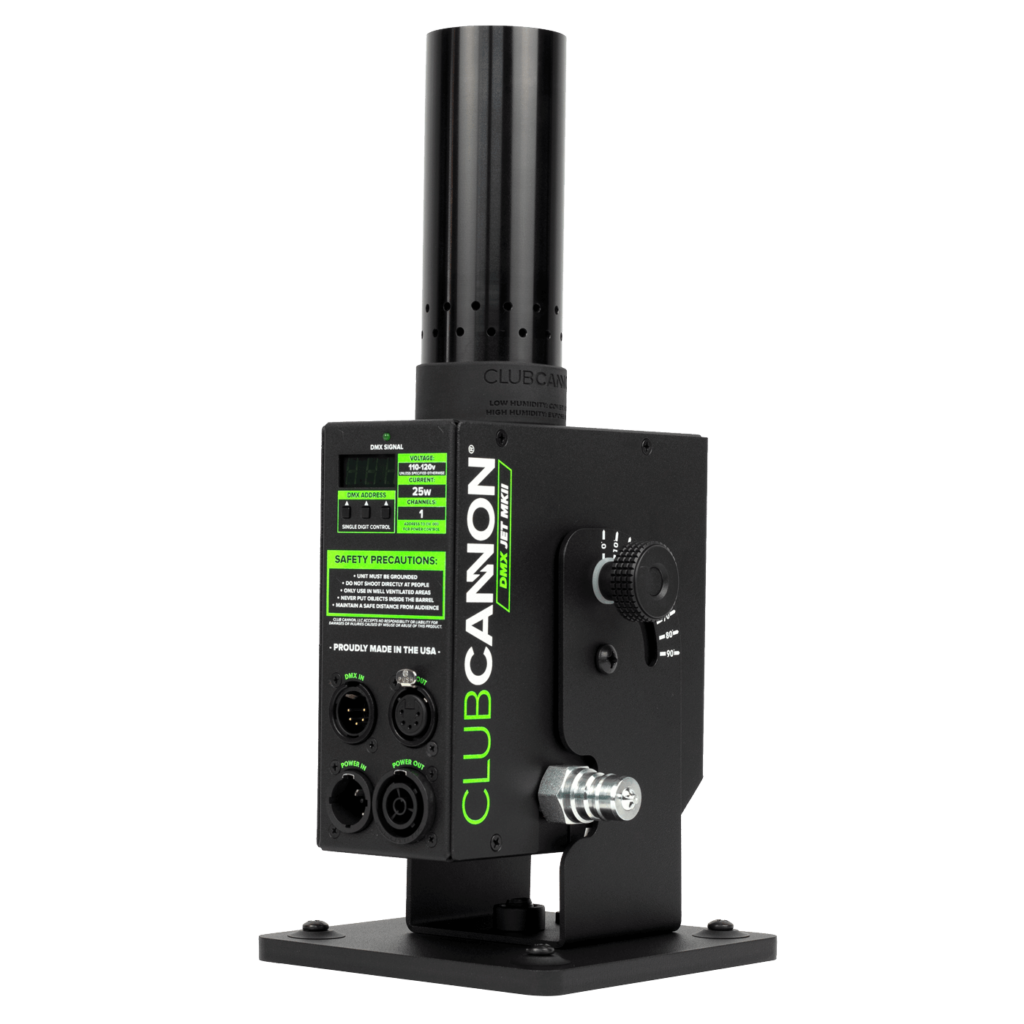

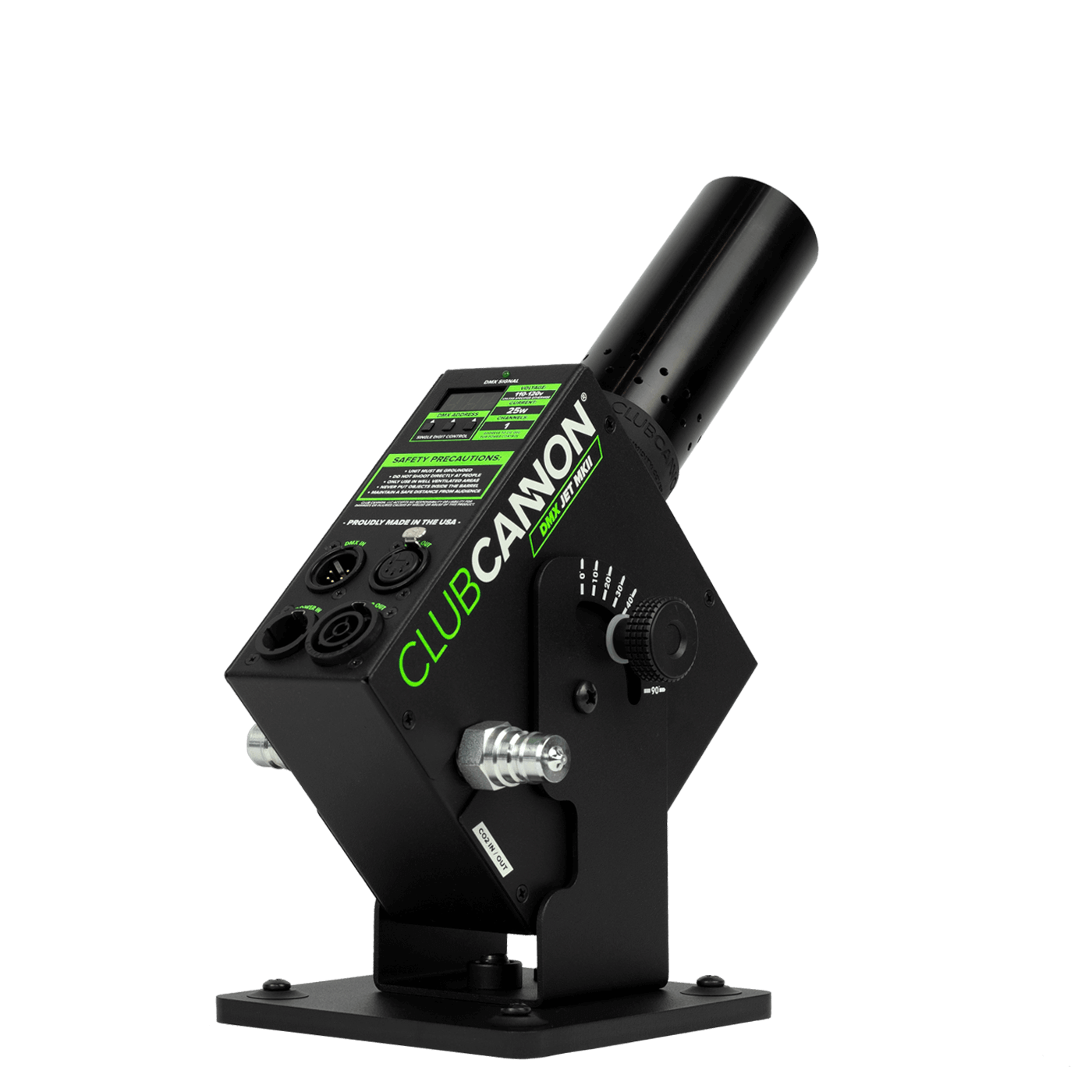

The Club Cannon DMX Co2 Jet is a stationary Co2 fixture used to create extraordinary special effects. This Co2 Jet produces a 20-30FT plume of ice cold fog!

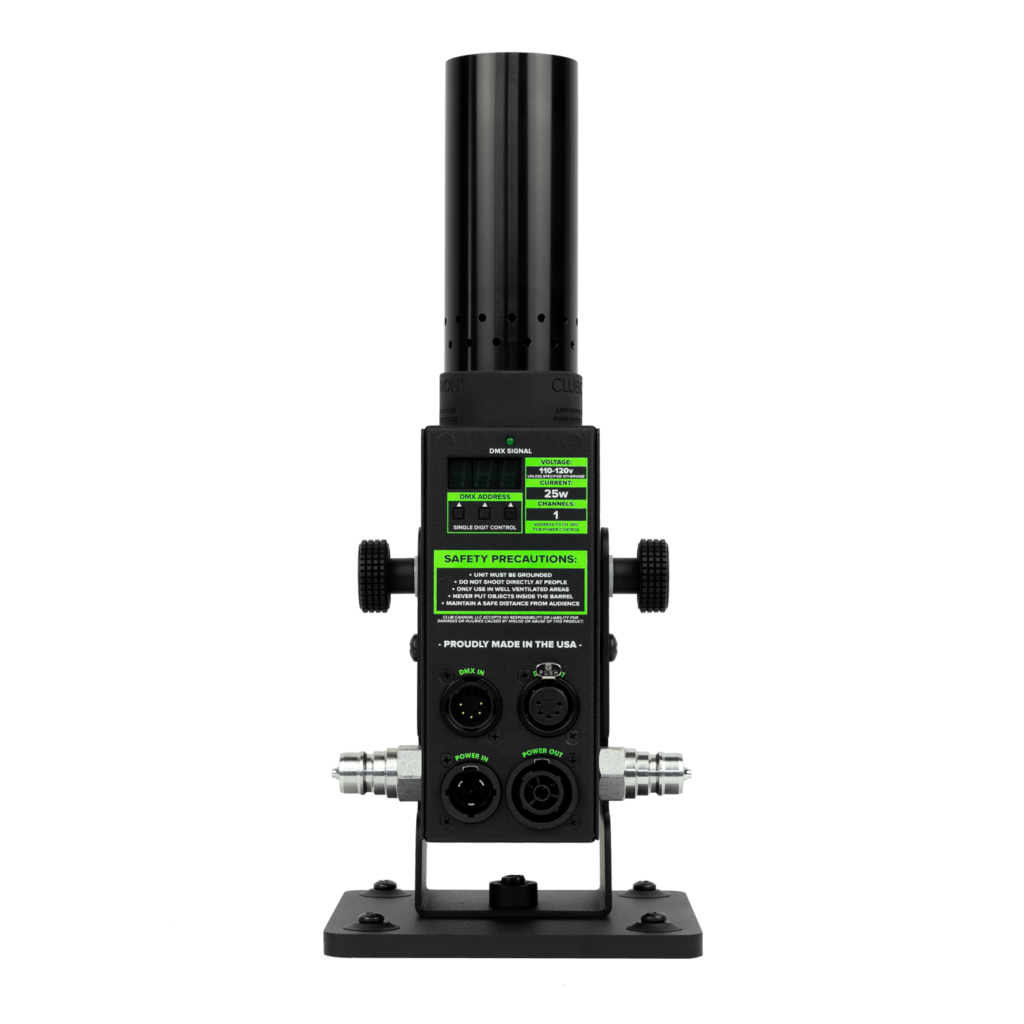

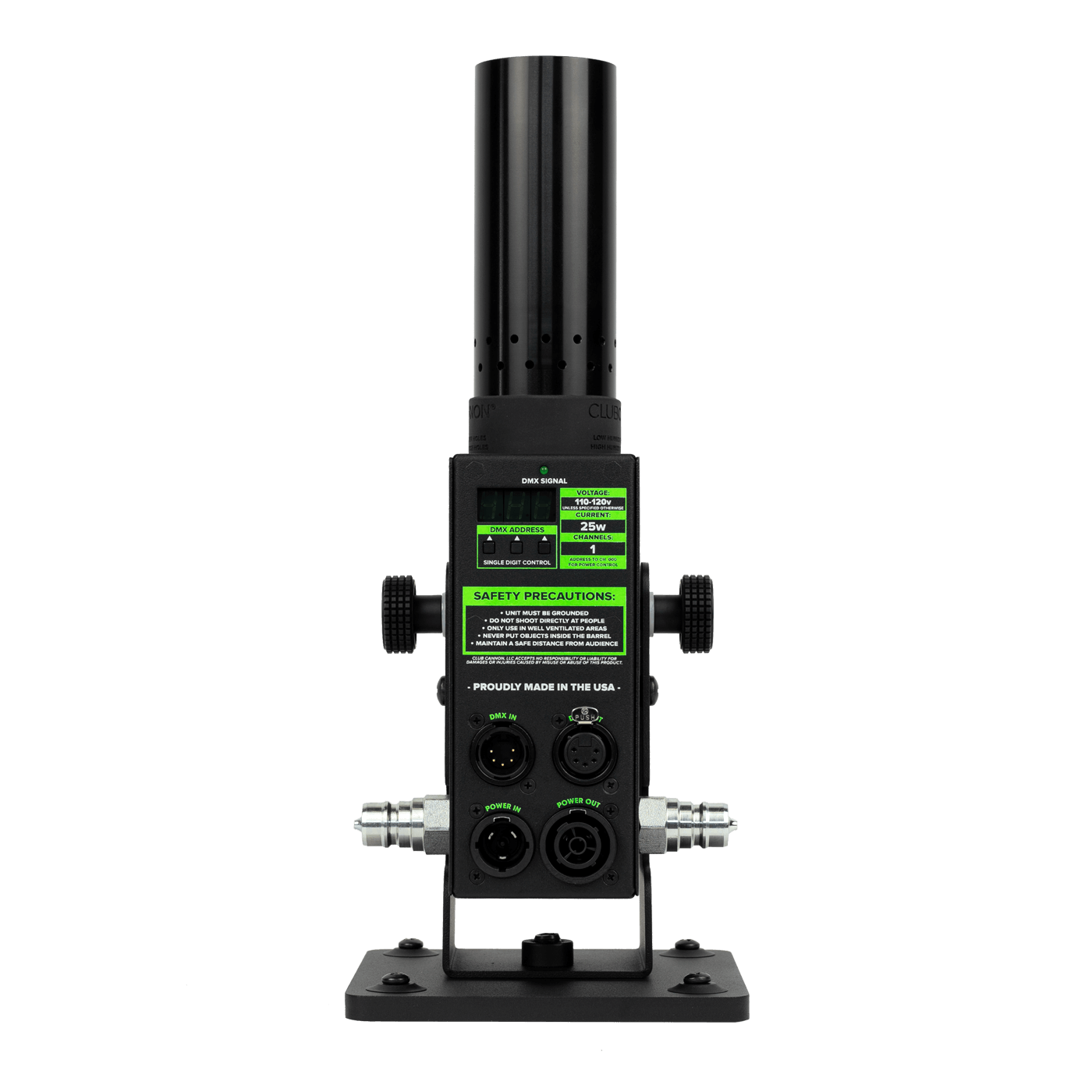

Control your Club Cannon Jet with DMX. The new DMX interface by Doug Fleenor Design makes addressing and controlling your Co2 Jet fast and easy. Each button on the back of the fixture controls individual digits, meaning you can set your DMX address in seconds, instead of scrolling through all 512 channels. You also have RDM control, which will allow you to remotely address your Co2 Jet from your DMX console. Every Co2 Jet can be configured with 3 pin or 5 pin Neutrik DMX connections.

For customers looking to control their Co2 Jet without DMX, simply address the Jet to channel 000. From now on when the fixture receives power, the valve will open. This is useful for use with a Relay pack, power strip, or any other controllable power source.

The 4 pound, steel base plate is designed to keep the jet in place while in use. However, each application is unique, so the base is removable, allowing a clamp to be attached, so the fixture can be hung from trussing.

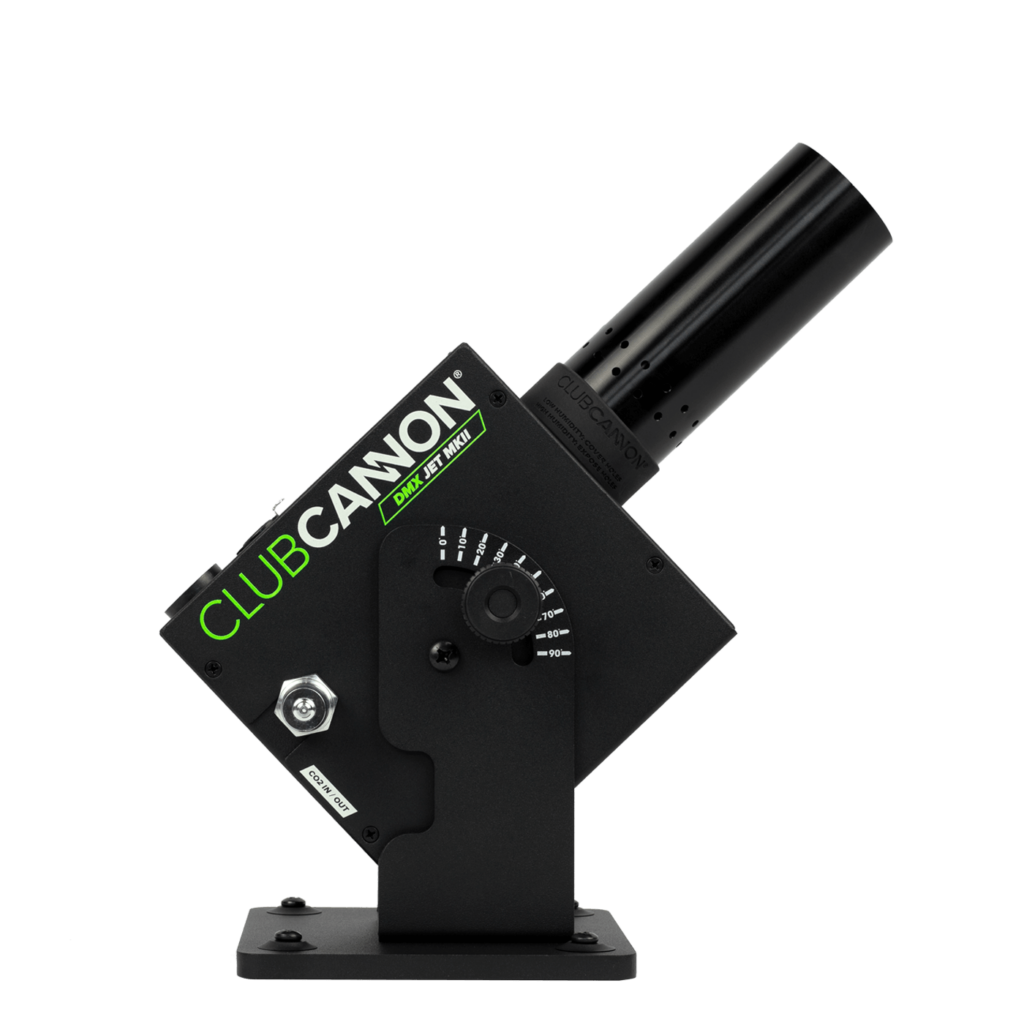

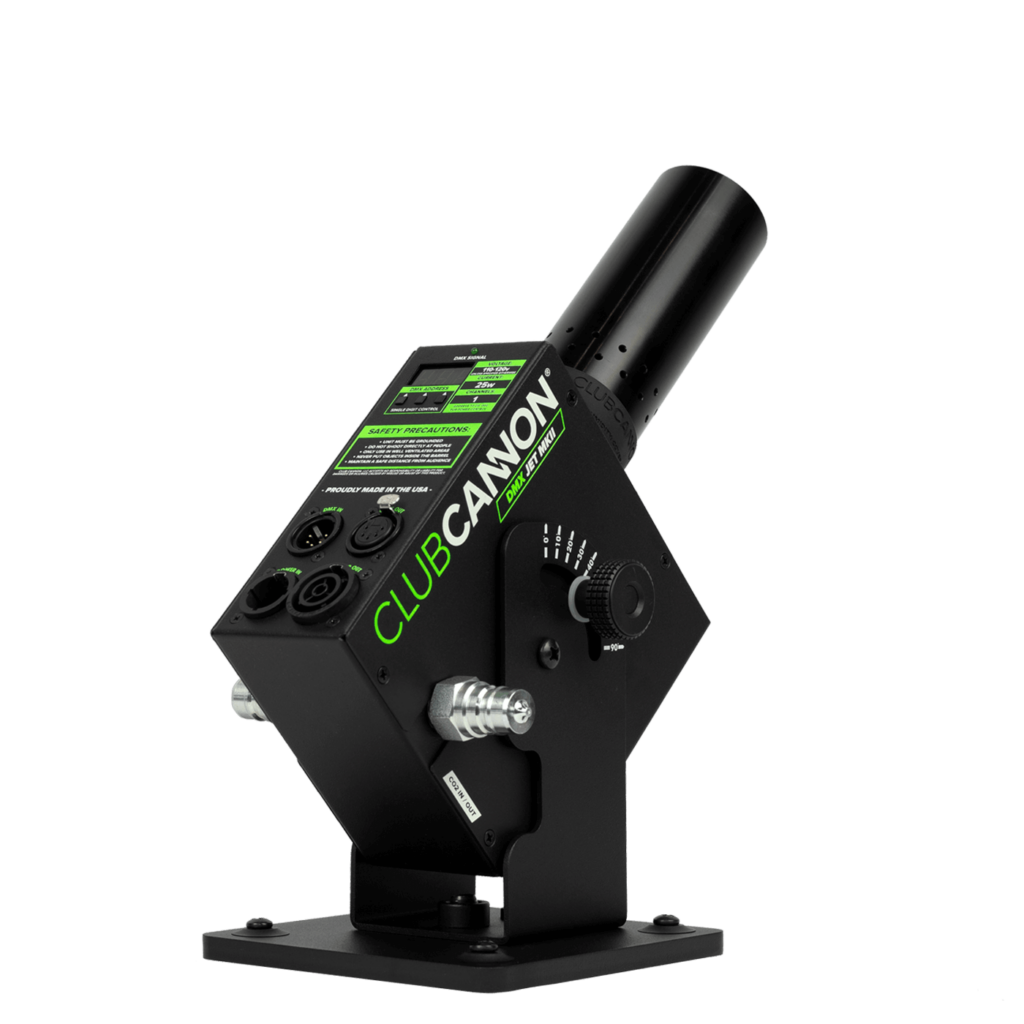

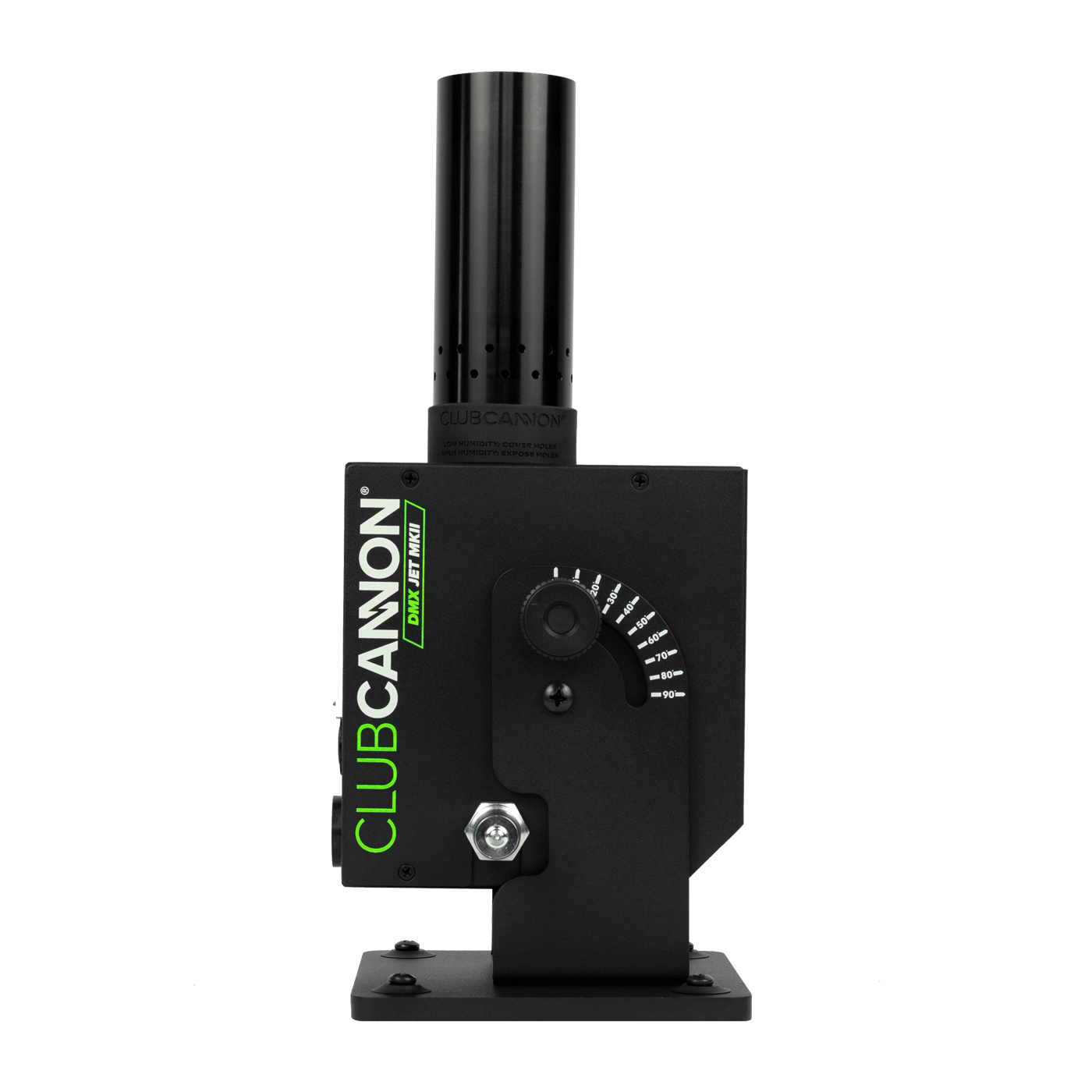

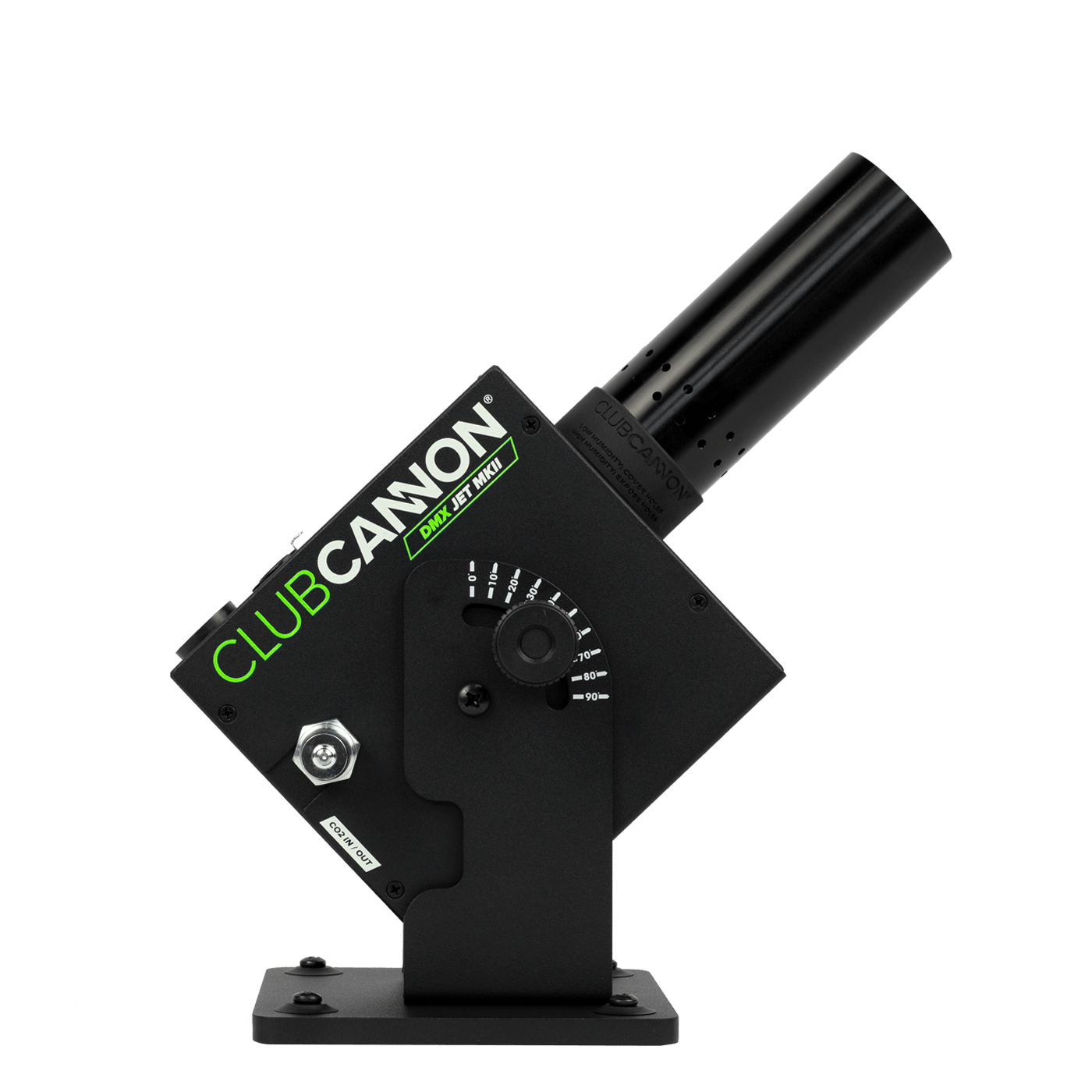

This Co2 jet can be angled 90 degrees, so you can aim them any direction you wish. Straight outwards, at a 45 degree angle, or vertically. The possibilities are endless, especially when using multiple units together.

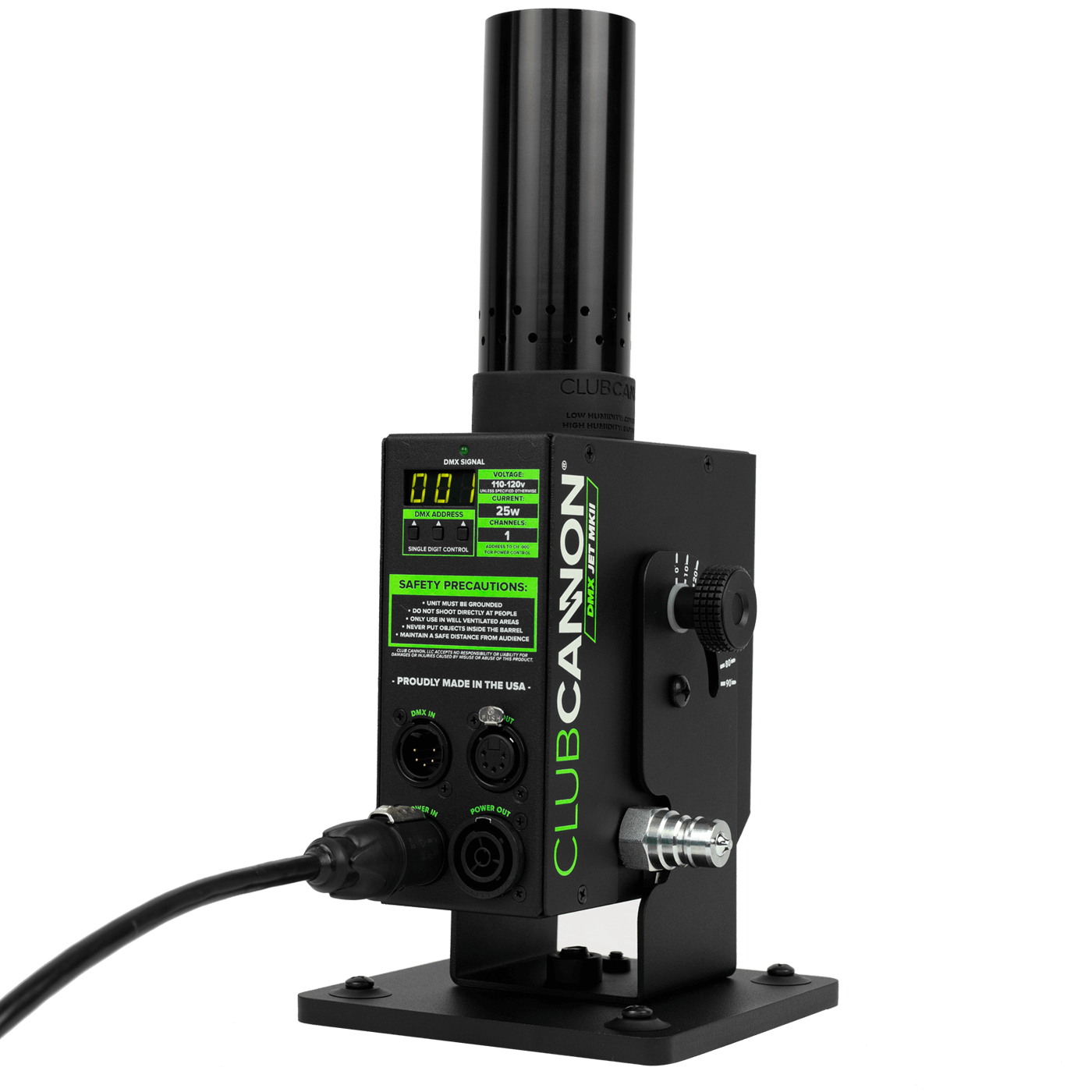

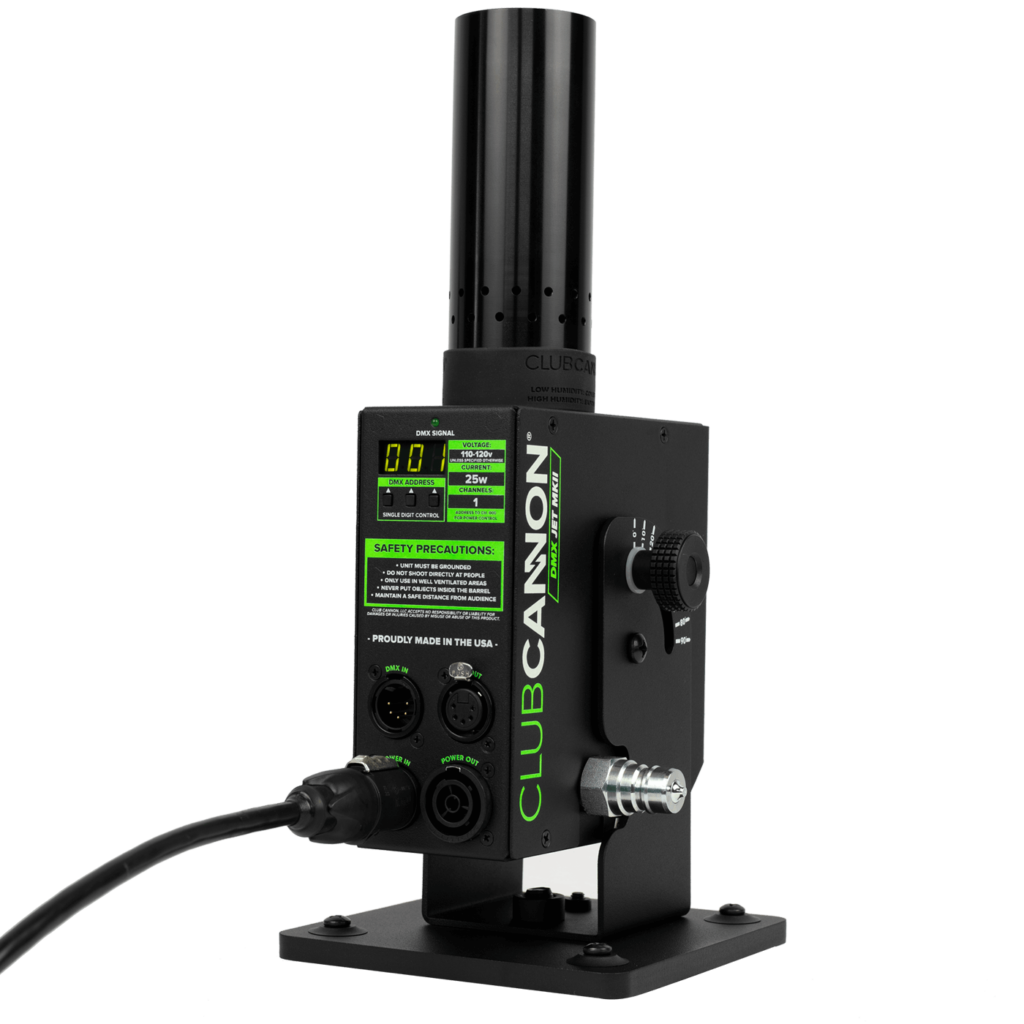

The locking Neutrik True1 power cords make transportation and setup easy. Never again worry about the power being unplugged unexpectedly. You can also utilize the True1 power output, and daisy chain power to multiple jets. The True1 cord is also water  and dust resistant, with IP65 certification. Daisy chain power cords can be found HERE.

Another great feature of these Co2 jets, is the Co2 passthrough. Each jet has a co2 input and output, so you can daisy chain jets together. This will save you time and money. We recommend supplying Co2 from both ends of the chain. For example; have your tank(s) on both stage left, and stage right. You would then link all the units together, so there is constant pressure throughout the whole system, from left to right. Daisy chain hoses can be found HERE.

The Club Cannon Co2 Jet comes equipped with a high pressure 15′ Co2 hose, (25, 35 & 50 Foot Hoses also available), equipped with a quick connect fitting for easy setup & takedown. Each jet also includes a Co2 tank attachment tool and 5 extra Co2 washers.

It is no surprise that the Club Cannon products are used by the worlds biggest Artists, Nightclubs, Festivals and Production Companies.

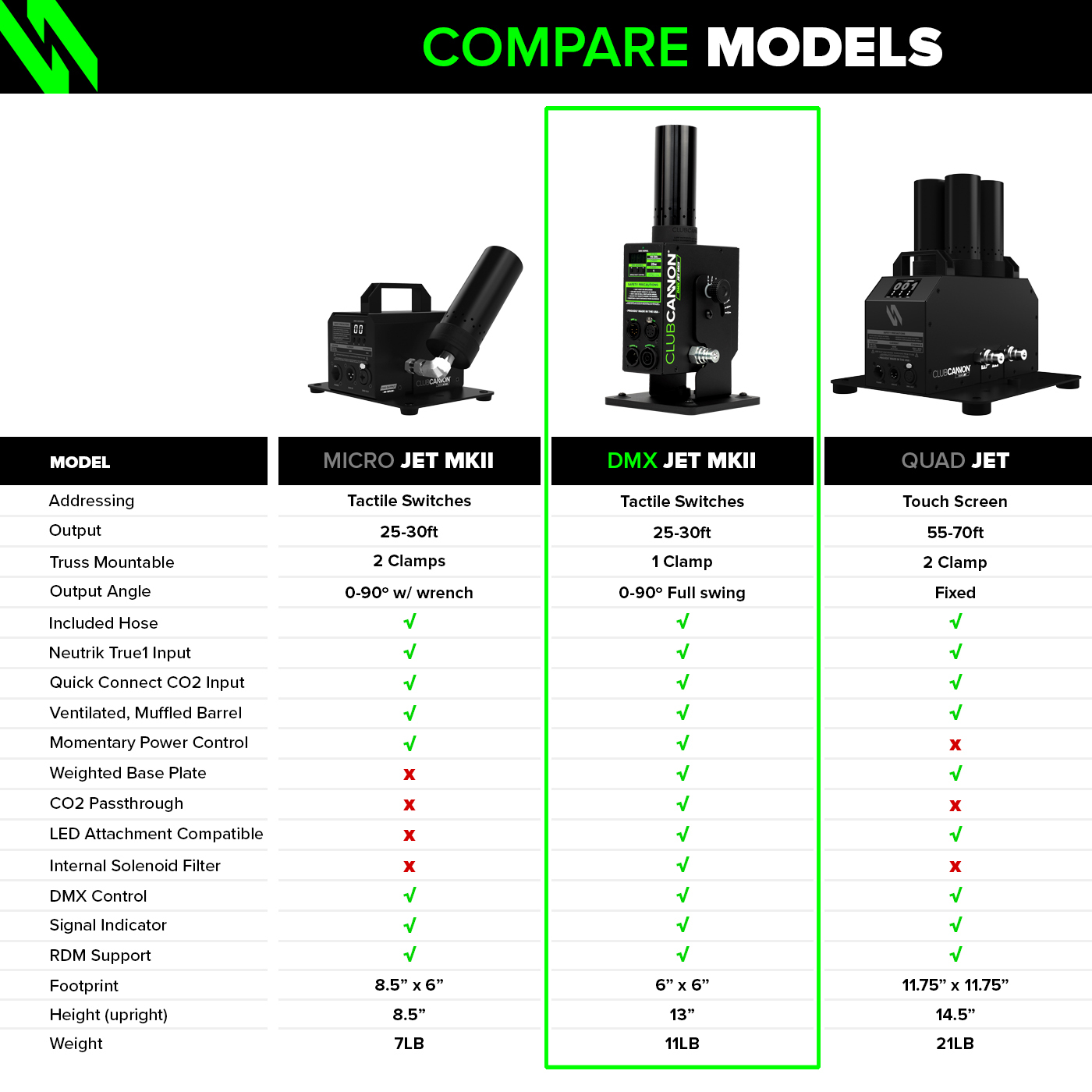

MKII vs previous generation DMX Jet:

  • More Robust Valve design
  • Improved Quick Connects
  • V4 Barrel With Integrated Silencer
  • Better output ventilation (Prevents Dry Ice Particles)
  • Integrated 1/2″ nut for easy changeover from Base to Clamp
  • Visible output angle on yoke

PLEASE NOTE: A Siphon Co2 Tank is required for the Club Cannon Co2 Jet to operate properly. More info about Co2 is listed below.

PROUDLY MADE IN THE U.S.A.




Co2 Info and Suppliers

The Club Cannon can be used with any Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). The Club Cannon will not operate properly with a standard Co2 tank, so you must be sure you are using a Siphon Tank.

CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you Club Cannon. You will get approximately 1-2 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: info@clubcannon.com

Common suppliers of CO2 Tanks are PRAXAIR and AIRGAS. Both companies have branches nationwide. Use the links below to find a supplier near you.

Use THIS LINK to find the nearest PRAXAIR location.

Use THIS LINK to find the nearest AIRGAS location.

Shipping Options

CLUB-CANNON-SHIPPING-MAP

All USA orders over $100 qualify for free shipping, using UPS ground. Estimated delivery times can be seen by expanding the image on the right. If you would like to upgrade to a faster shipping method, expedited options will be displayed during the checkout process, once you enter the shipping address.

International shipping is calculated during checkout. We ship using UPS, and orders have an estimated delivery time of 3-5 business days. If your order is too large to ship with our standard UPS service, we will contact you to review other shipping options.

International Buyers

Our international Co2 tank fitting is automatically installed with products shipped outside of USA, Canada, Mexico & South America.

International shipments typically arrive in 3-5 business days.

If you have questions please email us.

Warranty

All Club Cannon products come with a 1 year parts and labor warranty. If you need to make a warranty claim, please email us. More information about our warranty policy can be found on the Terms and Conditions page.
