The Button

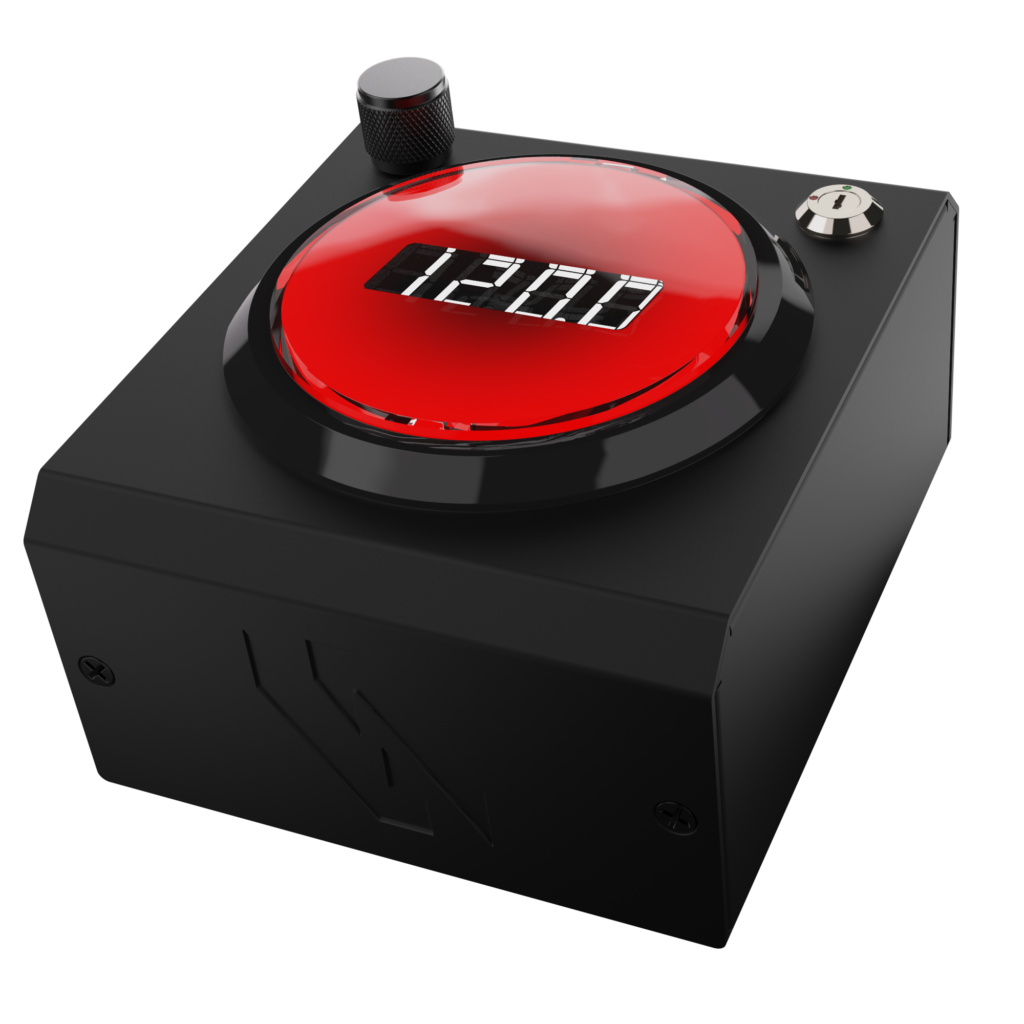

The Button is a standalone DMX Controller used to trigger Special Effects Products of all kinds.
The Button provides a simple, intuitive interface with vast capabilities. The Button will allow you to trigger CO2 Jets, Confetti Blowers, Streamers, Fog, Haze, Sparks, and everything in between.
TRACK TANK LEVELS
The built-in timer feature will track CO2 usage, giving you an accurate estimate of tank levels. Never again will you have to guess when you will run out of CO2! The timers can also be utilized to track consumable usage for other FX products that rely on consumables, as well as a reference for cues calling for a specified duration.
FULLY CUSTOMIZABLE
By default, The Button will output DMX channel 1 @255; however, the range of channels can be adjusted by the user.
The Button has 30+ preset colors/looks to choose from. If you need a specific color, utilize the custom color setting and assign your desired RGB values.
Includes:
The Button DMX Controller
3&5 Pin DMX Output
6FT Neutrik True1 Power Cord
2 Keys
PLEASE NOTE: The Button was designed to be compatible with the vast majority of DMX controlled SFX products. It is the customers responsibility to verify DMX requirements of the product they intend to control.
In stock, ships today!
The Big Red Button,
better than ever.
The Button introduces new capabilities in a compact & simple form factor. Designed from the ground up to provide an intuitive, capable DMX control solution for special effects equipment of all kinds. Change the color of the button anytime. 30+ presets available to choose from. Adjustable DMX output channels.
TRACK HOW MUCH IS LEFT IN YOUR TANK
Utilize the timer for tracking consumable use. Also useful when cues call for a specific duration.
CUSTOMIZE THE COLOR OF THE BUTTON
Our new LED design enables custom colors, unlike other big red buttons, and provides up to 10x brighter button illumination than previous models.
A DMX CONTROLLER AT IT'S HEART
Select a custom starting & ending DMX address, allowing the user to control any string of DMX channels, 001-512. A safety channel can also be assigned to be triggered whenever the key is in the on position.
Note: Only one DMX port can be used at a time.
DON'T NEED A TIMER?
When a timer is not required, user can elect to display a preset word, or disable the screen entirely.
Available presets include:
Cryo, FIRE, GO, and Shot.
TAKE CONTROL OF YOUR FX.

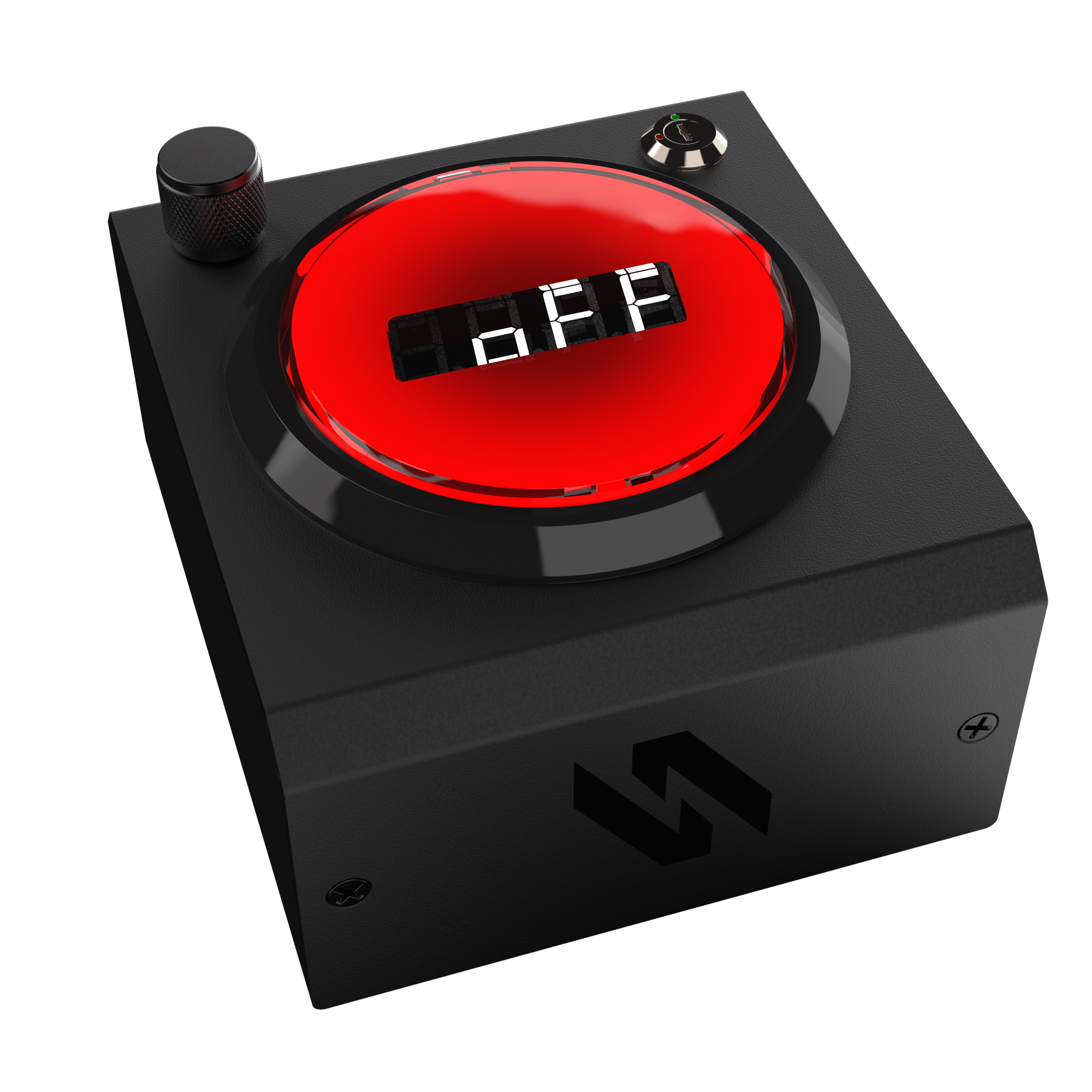

Cut Mode allows a time limit to be set, great for limiting the amount of use for a particular act. This is also useful for preventing operator from triggering the effect once tanks are depleted.
When the timer runs out, The Button’s DMX output will be disabled until the timer is refilled, or cut mode is disabled.
Your New Secret Weapon.
The Button provides a simple & intuitive control solution for FX products of all kinds.
| VOLTAGE |
|
| WEIGHT |
|
| POWER CONSUMPTION |
|
| DIMENSIONS |
|
| CONNECTIONS |
|
| DOWNLOADS |
Our new LED design enables custom colors, and provides up to 10x brighter button illumination than previous models.
The Button has 30+ preset colors/looks to choose from, and 1 custom color that can be set via individual RGB 0-255 settings.
Select a custom starting & ending DMX address, allowing user to control any string of DMX channels, 001-512.
Utilize the timer for tracking consumable use. Also useful when cues call for a specific duration.
The LEDs can act as a rotary meter if desired. The LEDs will work in conjunction with the timer to act as a countdown clock.
When a timer is not required, user can elect to display a preset word, or disable the screen entirely.
User adjustable. When armed, LEDs will default to 100% brightness and fade in & out, indicating it’s armed state.
User can adjust the pulse speed when armed, as well as the active output animation.
85-264v AC via PowerCON True1 input. Suitable for use worldwide.

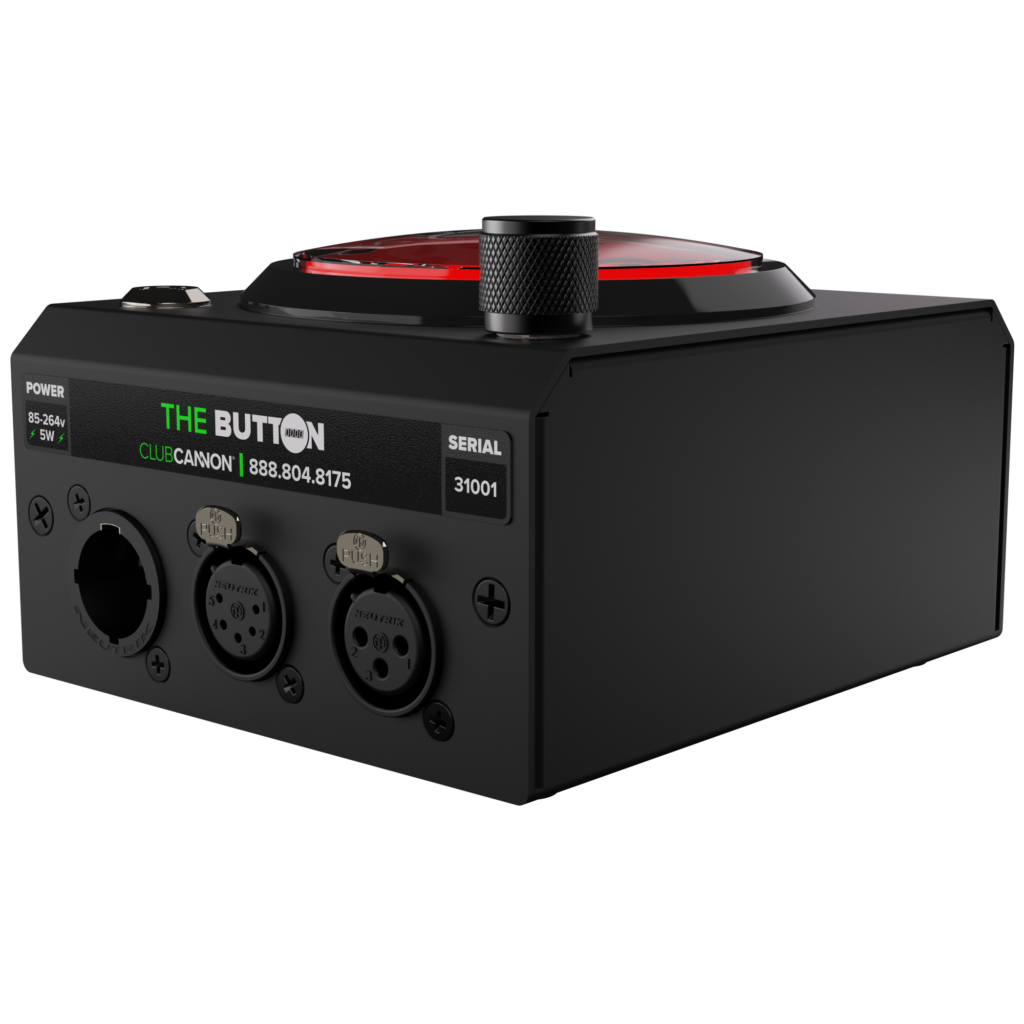

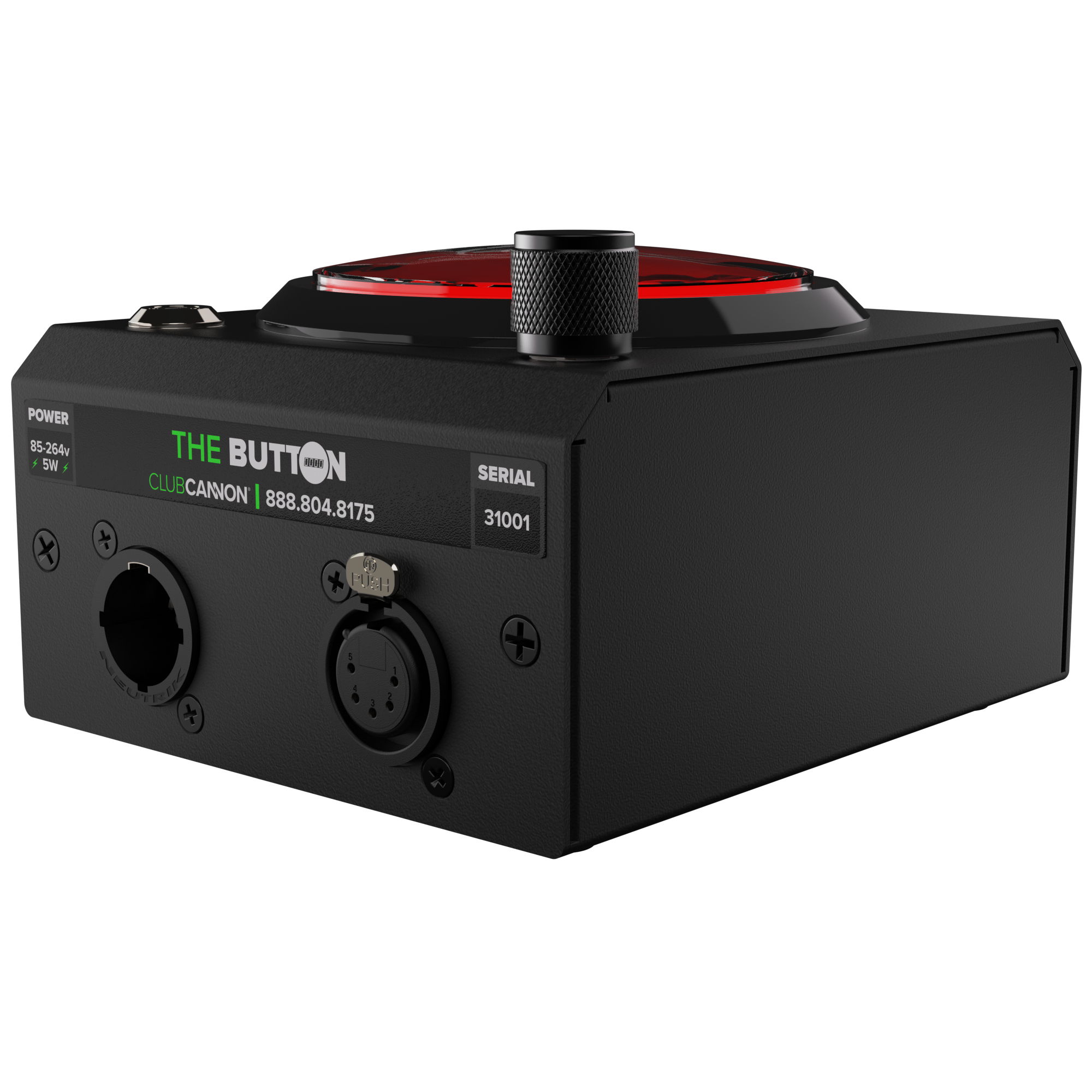

Includes both 3 Pin and 5 Pin.
Note: Only one port can be used at a time.
Club Cannon products require a Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). Products will not operate properly with a standard CO2 tank, so you must be sure you are using a Siphon Tank.
CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you product. You will get approximately 1 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: support@clubcannon.com
Common suppliers of CO2 Tanks are MATHESON, LINDE and AIRGAS. These companies have branches nationwide. Use the links below to find a supplier near you.
