LED Attachment II
The Club Cannon LED Attachment II is an accessory designed to be used in conjunction with the Pro Jet, allowing an impressive illumination of the fog column.
Featuring 6 x 20W LEDs, each with RGBWA+UV function. This unlocks an infinite amount of color possibilities. The underside of the fixture is equipped with 4 rubber coated magnets. This makes installing the LED Attachment quick, easy, and secure.
The LED Attachment II can plug and play with The Button, ShoStarter, and ShoMaster for easy control. In addition, there are several DMX modes to choose from, multiple zone control, selectable "fade out" time, and RDM.

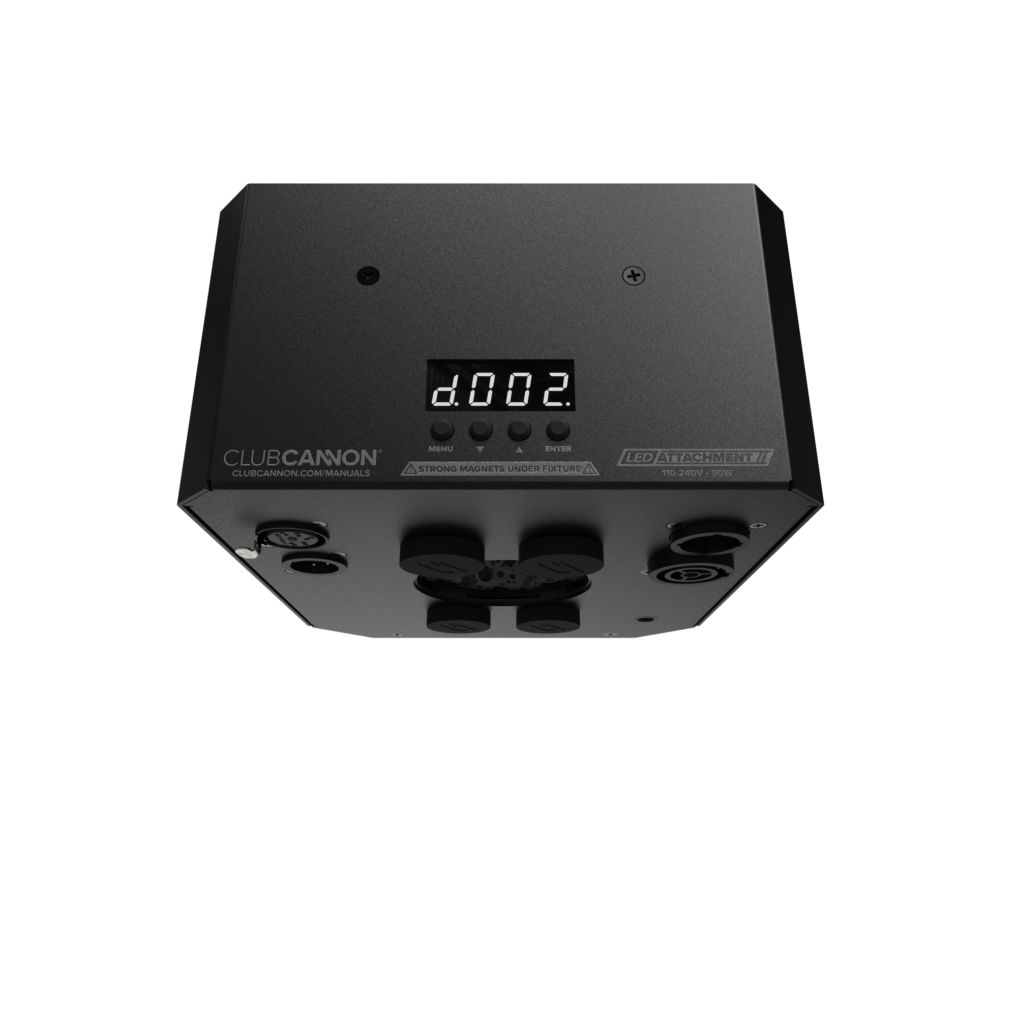

DMX & Power ports are now on the bottom of the fixture, providing tidy cabling.
INCLUDES:
- LED Attachment II
- 5 pin DMX jumper
- True1 jumper cord
- M8 safety eye bolt
PROUDLY MADE IN THE U.S.A.
PLEASE NOTE: A Pro Jet is required for each LED Attachment. Sold Separately.
In stock, ships today!
Back & Brighter Than Ever.
The LED Attachment II has been completely revamped. Equipped with an entirely new design, the LEDs are now twice as powerful as the previous generation. Designed with simplicity in mind, the LED Attachment II brings a user-friendly experience with unmatched performance.
UNLOCK A NEW WAY TO LIGHT CO2
6 x 20W LEDs, making the LED Attachment II the brightest cryo accessory on the market. Unleash a whole new dimension of CO2 lighting, with multi-zone control.
KEEP IT CLEAN
We’ve taken care of cable management. With DMX and Power ports conveniently placed at the bottom of the fixture, the included jumper cords are the perfect length, keeping your setup clean and organized, ensuring a clutter-free appearance.
MAKE IT QUICK
Installing the LED Attachment II is easier and more secure than ever – thanks to four powerful magnets on the underside of the unit. Just attach and go.
FADE IT OUT
Customize the LED fade-out time to match the CO2 dissipation rate, creating a unique effect. The LED Attachment II is equipped with built-in fade-out options, ranging from 0.5 – 2.5 seconds.
Features & Specifications
Take a look at the product description below. If you still have questions, feel free to visit our FAQ page, or reach out to us.
| VOLTAGE |
|
| WEIGHT |
|
| MAX POWER CONSUMPTION |
|
| DIMENSIONS |
|
| CONNECTIONS |
|
| DOWNLOADS |
- Our new LED and Lens design provides brighter illumination than previous models
- Featuring 6 x 20w LEDs with 10Deg lenses
- The LED Attachment II features 2 full zones of RGBWA+UV control in “TOUR” mode
- DMX Indicator can be entirely disabled to create a stealth, sleek look on the fixture
- Simple- 2ch
- Basic – 5ch
- Raw – 8ch
- Extended – 9ch
- Tour – 14ch
- 4 high power magnets hold the LED Attachment in place without having to screw anything together
- An included safety ring can be used when unit mounted to truss or above people
- 5-pin XLR Jumper
- True1 jumper
- 110-240v AC via PowerCON True1 input
- Suitable for use worldwide
- 5 Pin DMX
- RDM Support for addressing, changing modes, and monitoring
Club Cannon products require a Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). Products will not operate properly with a standard CO2 tank, so you must be sure you are using a Siphon Tank.
CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you product. You will get approximately 1 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: support@clubcannon.com
Common suppliers of CO2 Tanks are MATHESON, LINDE and AIRGAS. These companies have branches nationwide. Use the links below to find a supplier near you.
