Micro CO2 Jet MKII

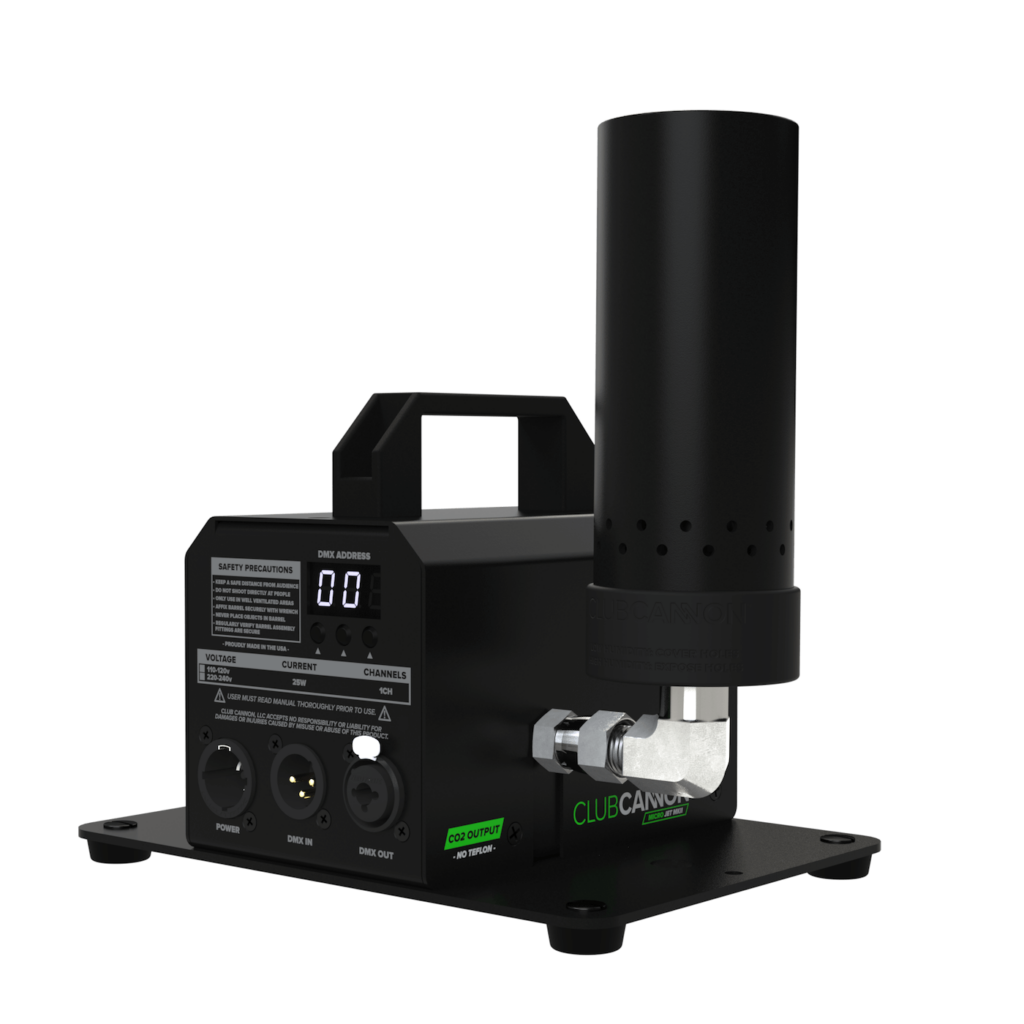

The Club Cannon Micro Jet MKII is a stationary CO2 fixture used to create extraordinary special effects. This CO2 Jet produces a 20-30FT plume of ice cold fog.

Control your Club Cannon Micro Jet MKII with a DMX controller, or via momentary power with the included Power Mode Adapter. Most customers will elect to use a DMX controller to trigger the Micro Jet MKII. If you need a control solution, consider one of our standalone DMX Controllers.

INCLUDES:

PROUDLY MADE IN THE U.S.A.

Datasheet

$0.00
Configure
  • Upgrade Hose Length

    This product includes a 15 foot hose. If you would like to upgrade to a longer hose, select your option below.

    • 0 $
    • 50 $
    • 100 $
    • 175 $

    Clamp Options

    Fly your Micro Jet on trussing. We recommend using 2 clamps, one mounted to each side of the base plate.

    • $
    • 50 $

-

Download Manual
$0.00

Small Footprint.
Big Effect.

Don't let the size fool you. The Micro Jet MKII is a powerful product that will produce 25-30FT plumes of ice cold fog. With integrated DMX control, triggering your CO2 Jets has never been easier. Explore the additional features below.

Features & Specifications

Take a look at the product description below. If you still have questions, feel free to visit our FAQ page, or reach out to us.

MICRO JET MKII

FEATURES

  • DMX Controllable (3 Pin)
  • Robust CO2 Valve
  • Quick Connect Hose
  • Compact size
  • Neutrik True1 input
  • Clamp holes on base plate
  • Versatile output angle options
  • Made in the USA

CONTROL

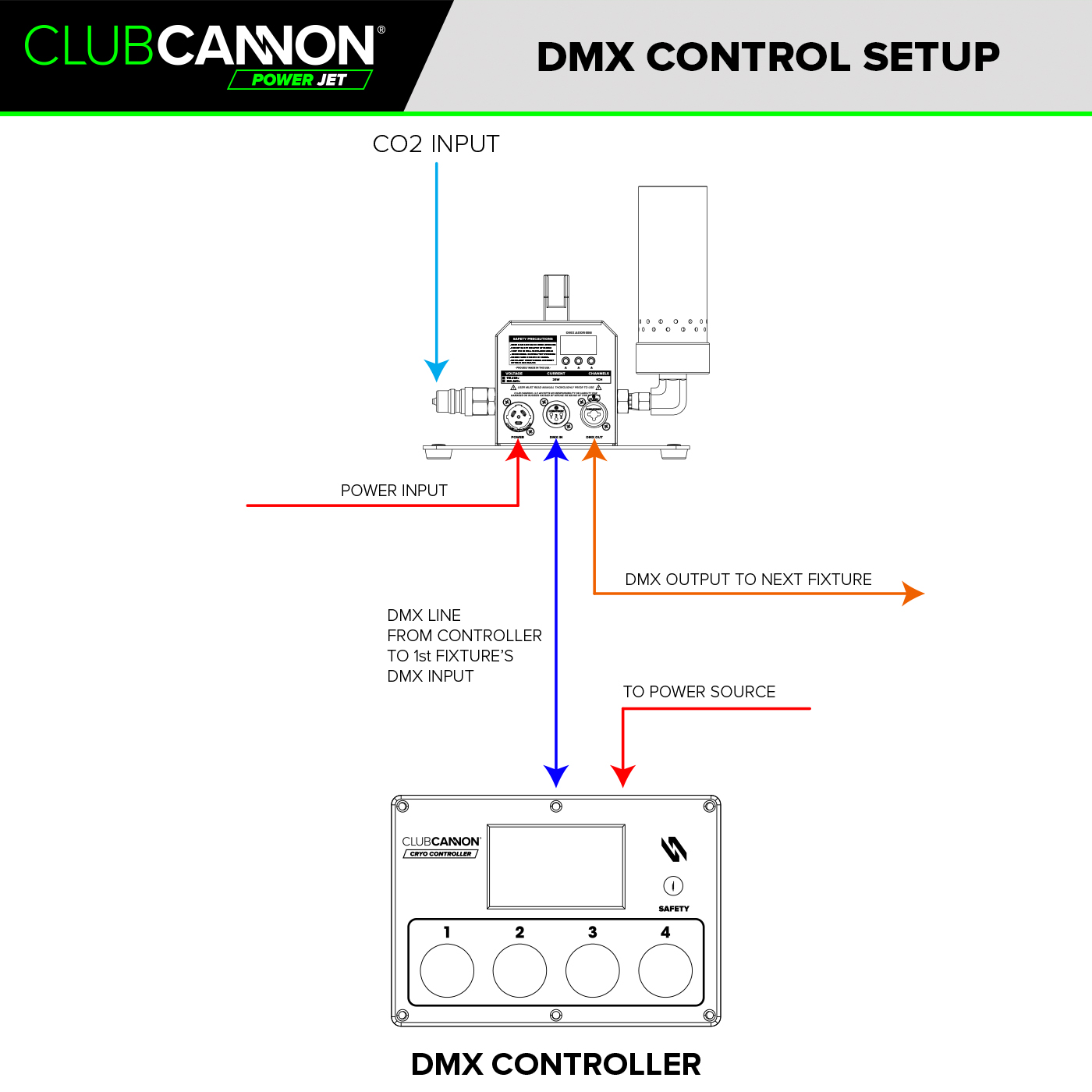

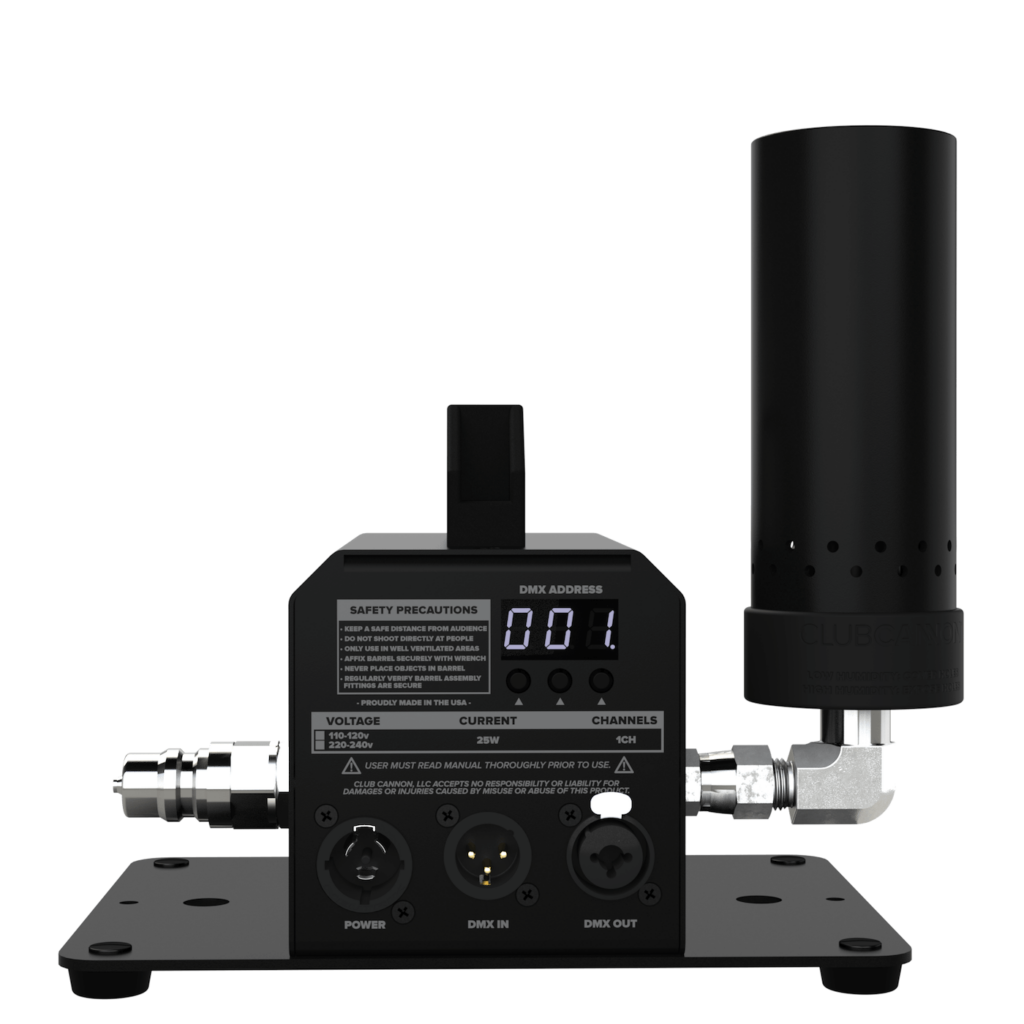

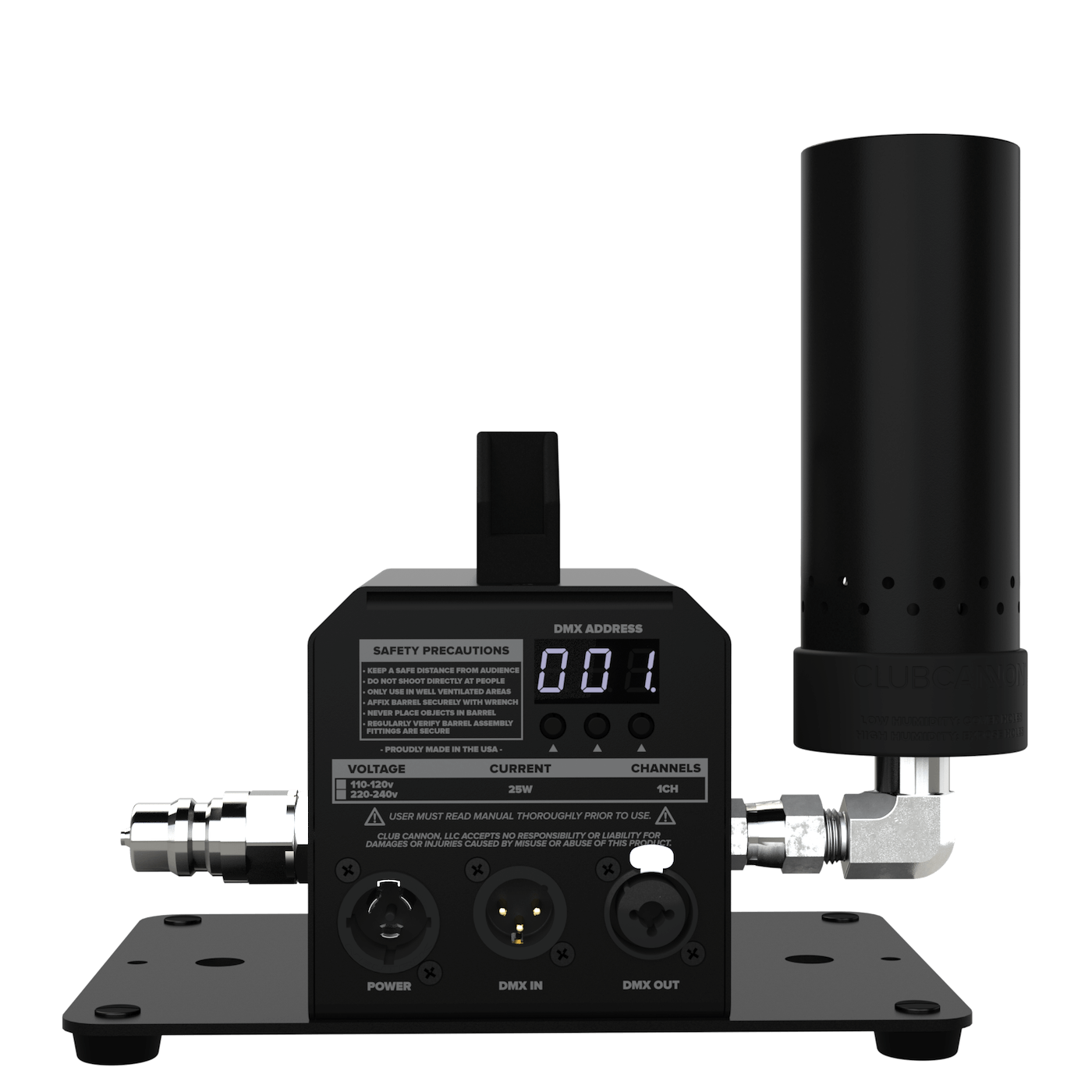

Control your Club Cannon Jet with DMX via the 3 pin input & output connections. Control can be achieved by using one of our DMX Controllers. The Micro Jet MKII requires 1 channel of DMX to engage output.

If you wish to control the Micro Jet MKII with momentary power, that can be achieved by inserting the included Power Mode Adapter.

PLEASE NOTE: This feature should only be utilized by an operator who is familiar with momentary power control. When the Power Mode Adapter is installed, the Micro Jet MKII will engage output immediately when it receives power.

MOUNTING

The steel base plate is designed to keep the jet in place while in use. The base is designed to allow 2x truss clamps to be installed, making it easy to hang the fixture from trussing. The Micro Jet MKII requires clamps that use 1/2″ bolts.

Additionally, the feet can be removed from the base if the product is to be mounted to a solid surface.

OUTPUT

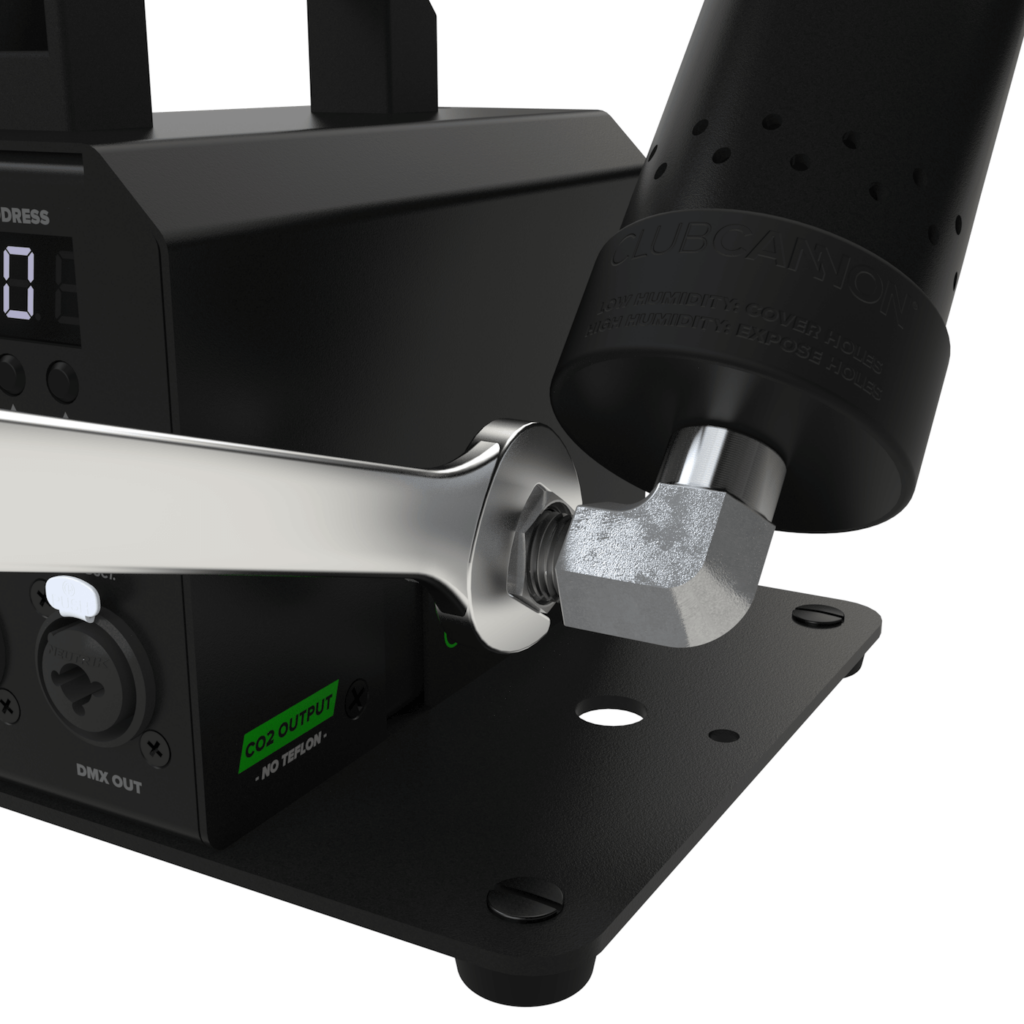

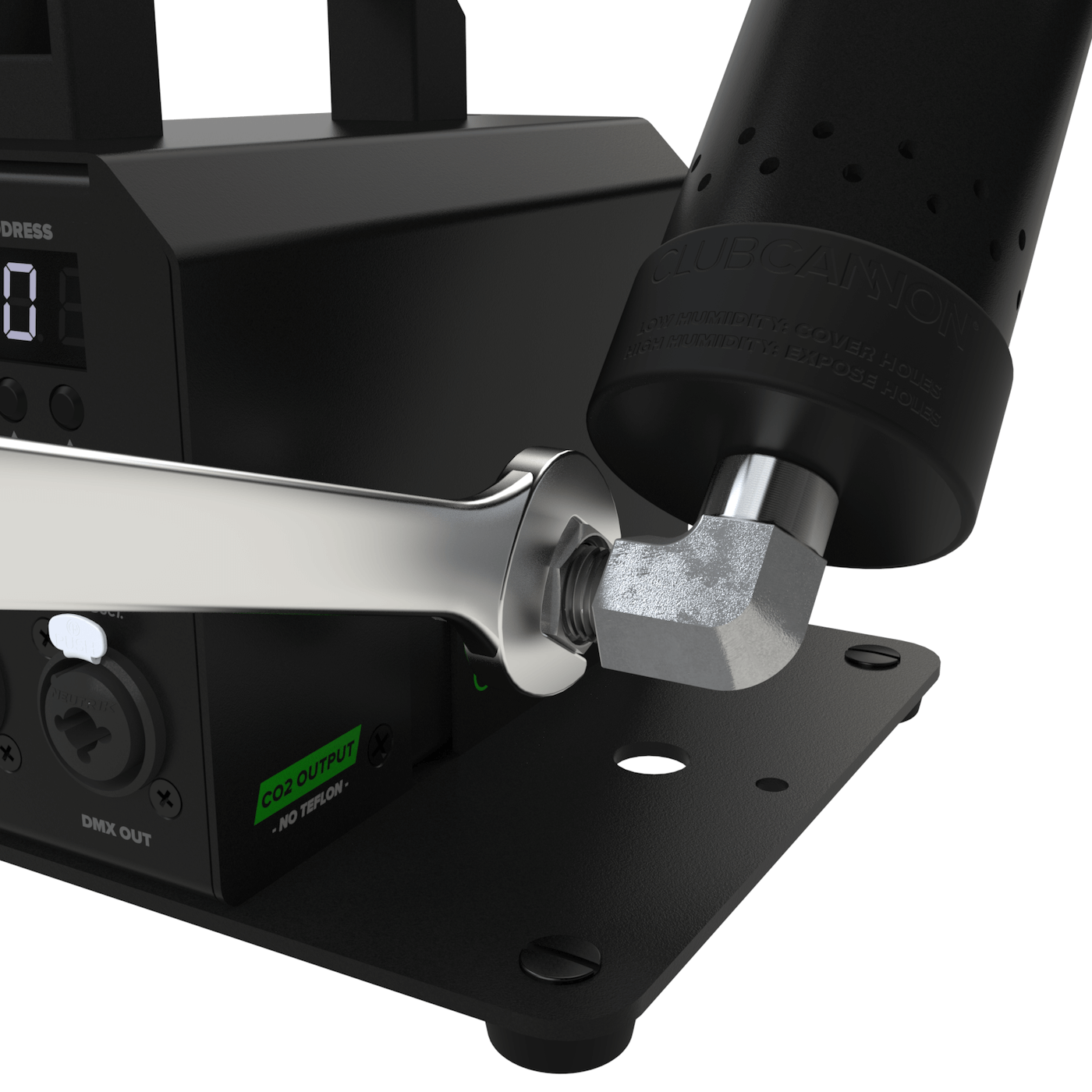

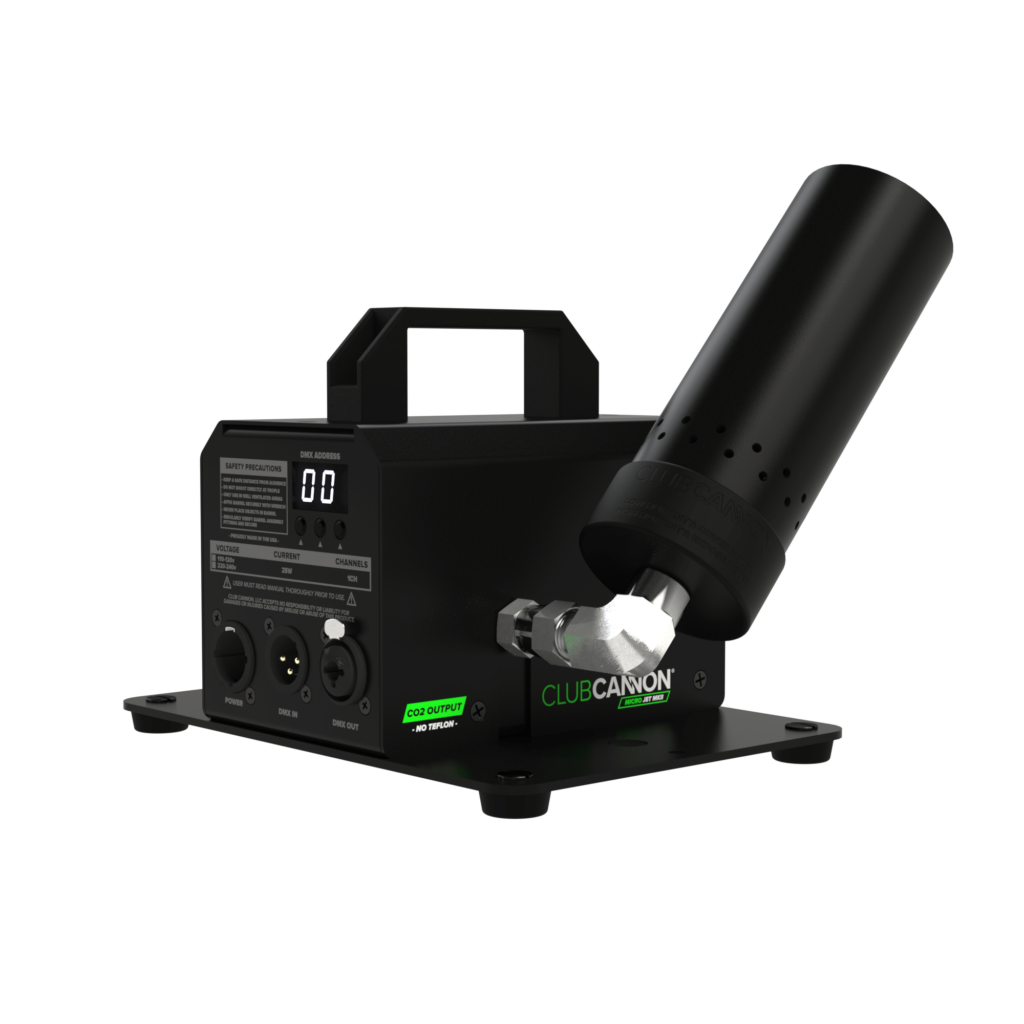

This CO2 jets output can be angled 0-90 degrees, making it suitable for a variety of applications. Simply loosen the barrel fitting on the side of the jet, position at desired angle, and tighten with an adjustable wrench. When attaching the barrel assembly, tighten the fittings 1/4 turn past hand tight to ensure a solid connection.

On average, the CO2 will shoot 20-30ft. In high humidity places, the output can go even further.

PURGE LINES

This feature will allow you to purge the remaining pressure through the unit after your tank has been turned off. To activate, disconnect DMX and hold buttons 1 & 3 for 3 seconds. You will be prompted with a “GET BACK” warning on the screen, followed by a 5 second countdown. The valve will then open for 10 seconds, sufficient for clearing hose lines.  Once all pressure is clear, you can safely disconnect the hose fittings.

PLEASE NOTE: A Siphon CO2 Tank is required for the Club Cannon Micro Jet MKII to operate properly. More info about CO2 is listed below.



The Club Cannon can be used with any Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). The Club Cannon will not operate properly with a standard CO2 tank, so you must be sure you are using a Siphon Tank.

CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you Club Cannon. You will get approximately 1-2 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: info@clubcannon.com

Common suppliers of CO2 Tanks are PRAXAIR and AIRGAS. Both companies have branches nationwide. Use the links below to find a supplier near you.

Use THIS LINK to find the nearest PRAXAIR location.

Use THIS LINK to find the nearest AIRGAS location.

The estimates below reflect how long your package will take to arrive.

We ship Monday-Friday. Shipping cutoff time is 3PM, PST.

West Coast. 1-2 Business Days

Mid-West 3-4 Business Days

East Coast: 4-5 Business Days

International: 3-5 business Days

If you need your items sooner, expedited shipping options will be displayed once your shipping address has been entered.

Our international CO2 tank fitting is automatically installed with products shipped outside of USA, Canada, Mexico & South America. International shipments typically arrive in 3-5 business days. If you have questions please email us.

All Club Cannon products come with a 1 year parts and labor warranty. If you need to make a warranty claim, please email us. More information about our warranty policy can be found on the Terms and Conditions page.
