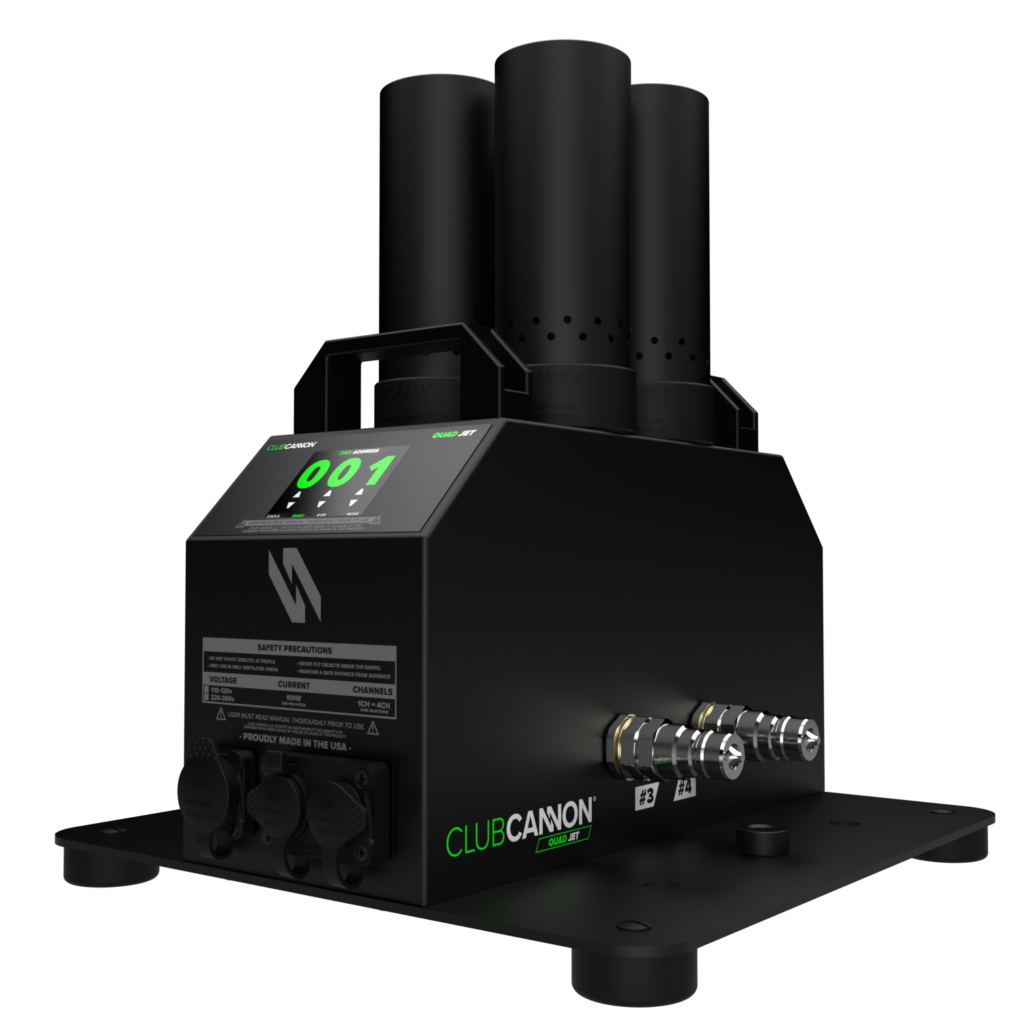

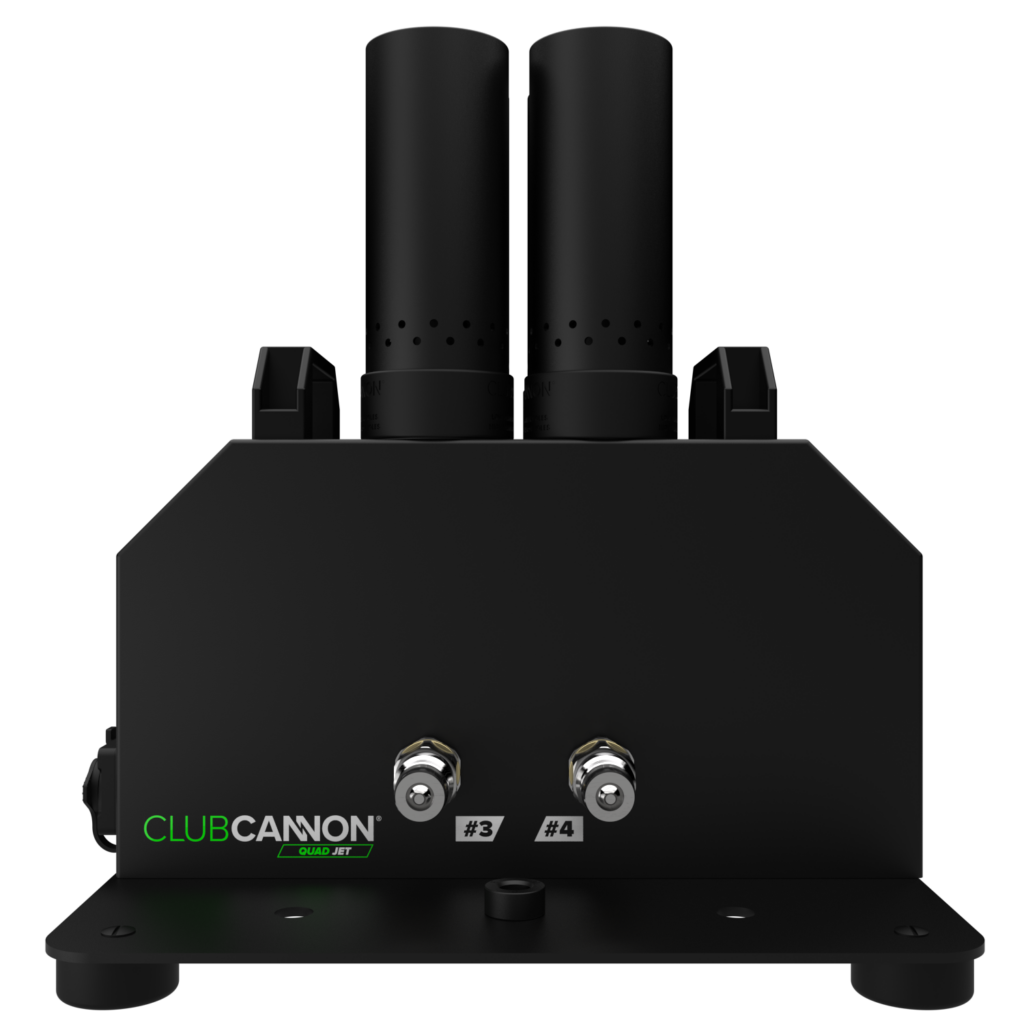

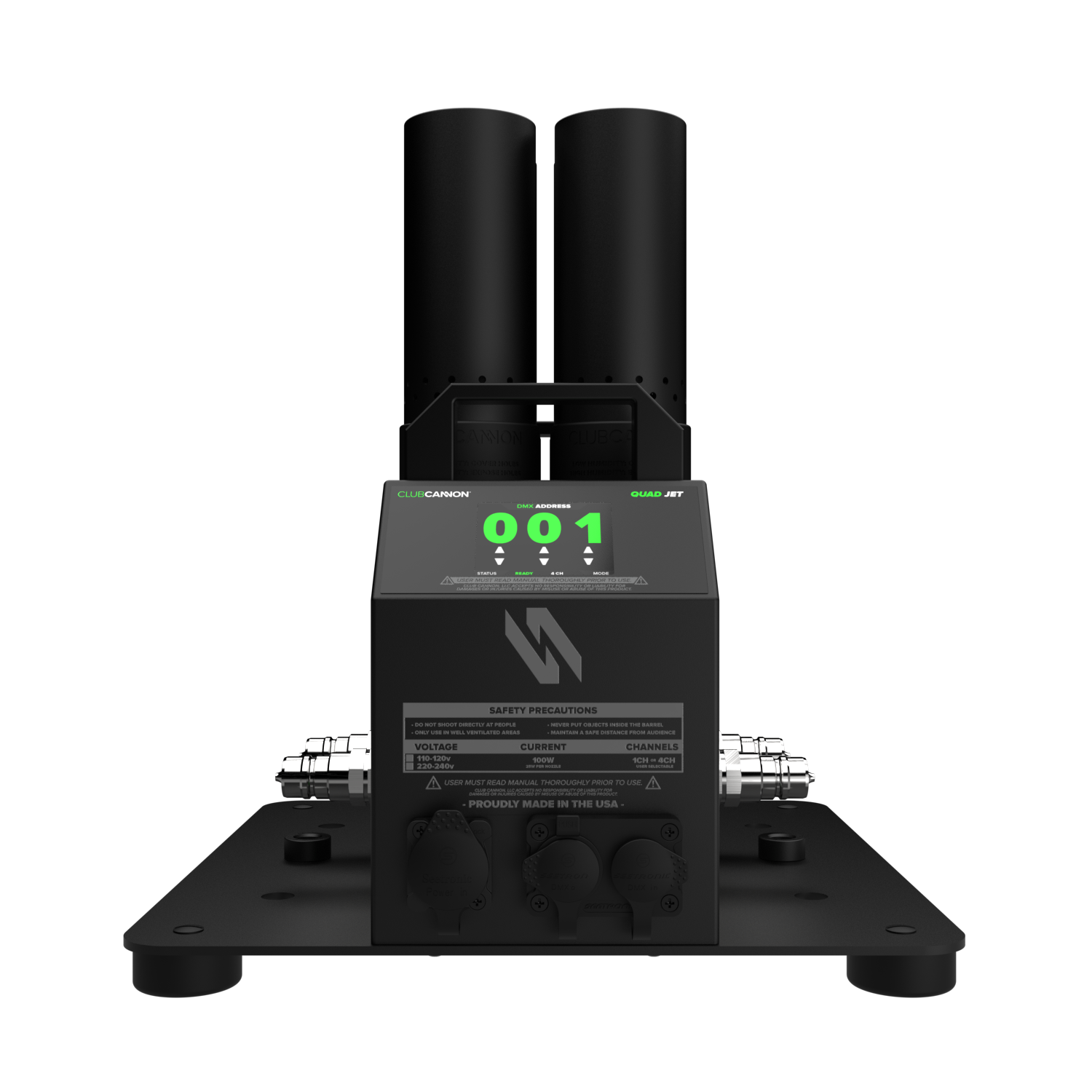

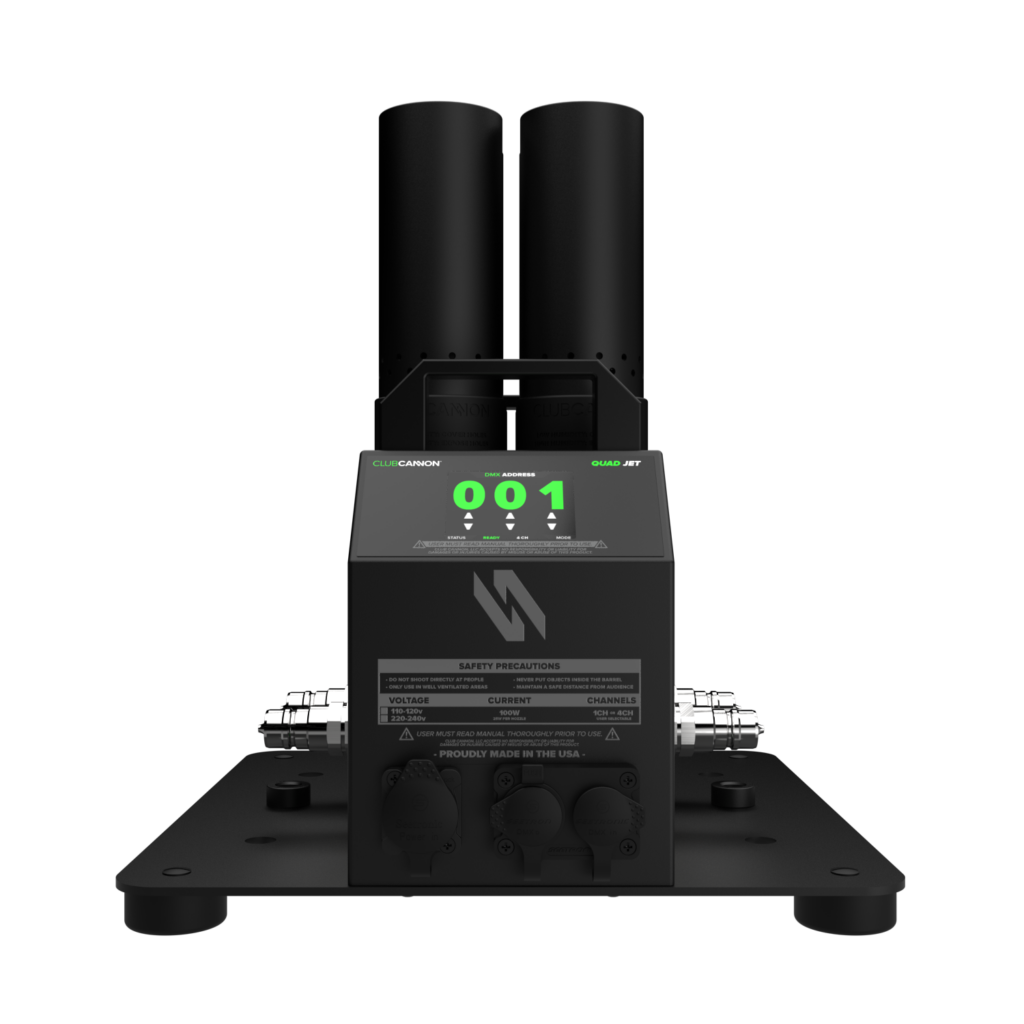

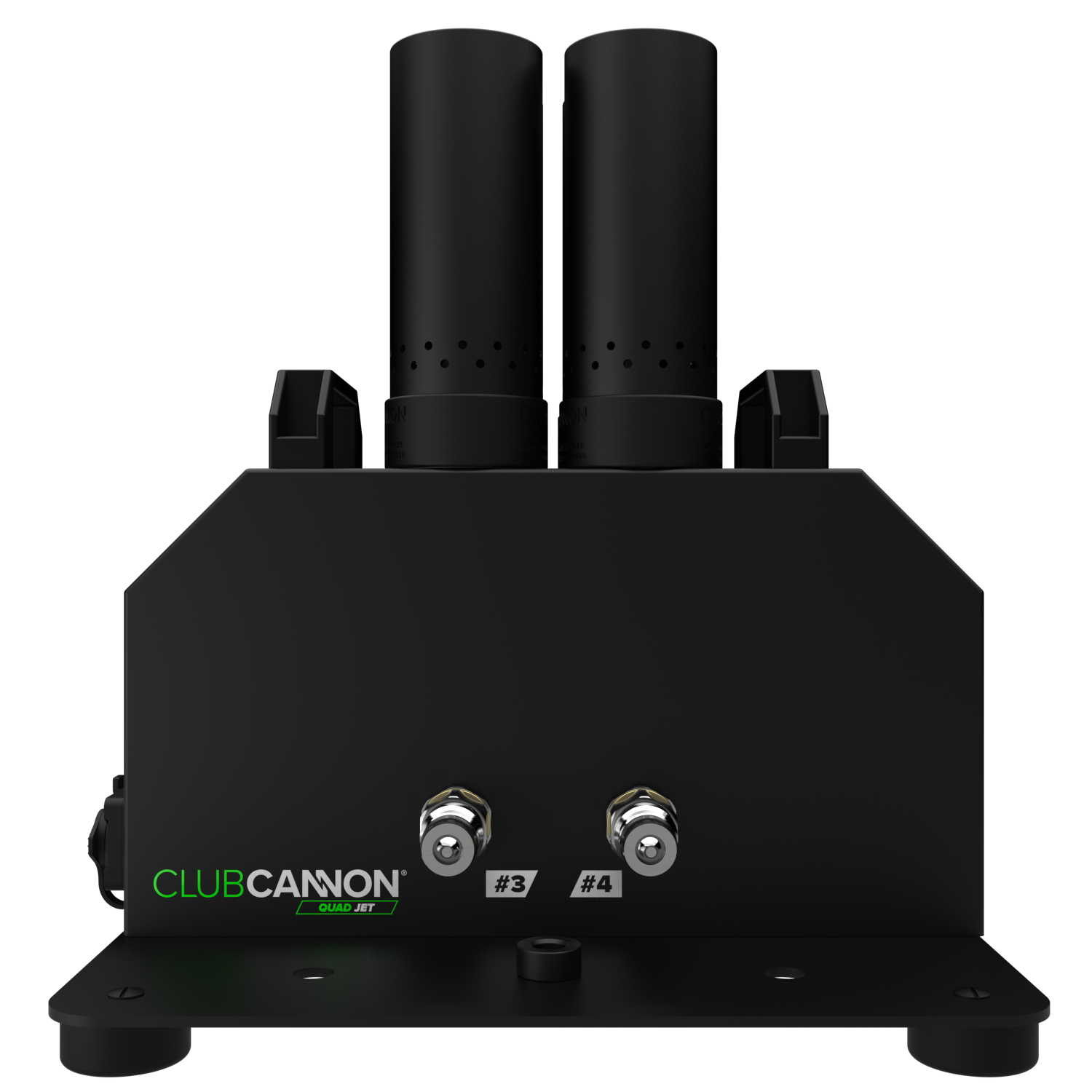

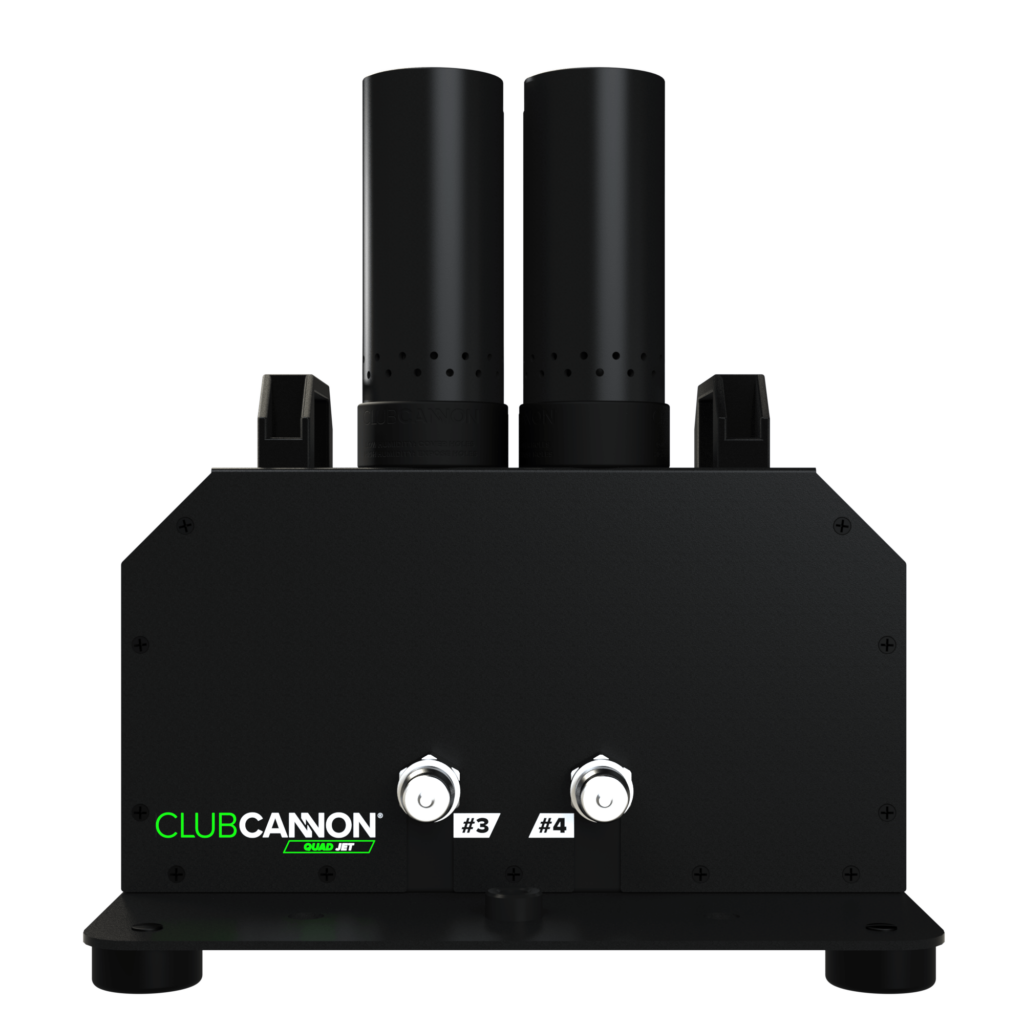

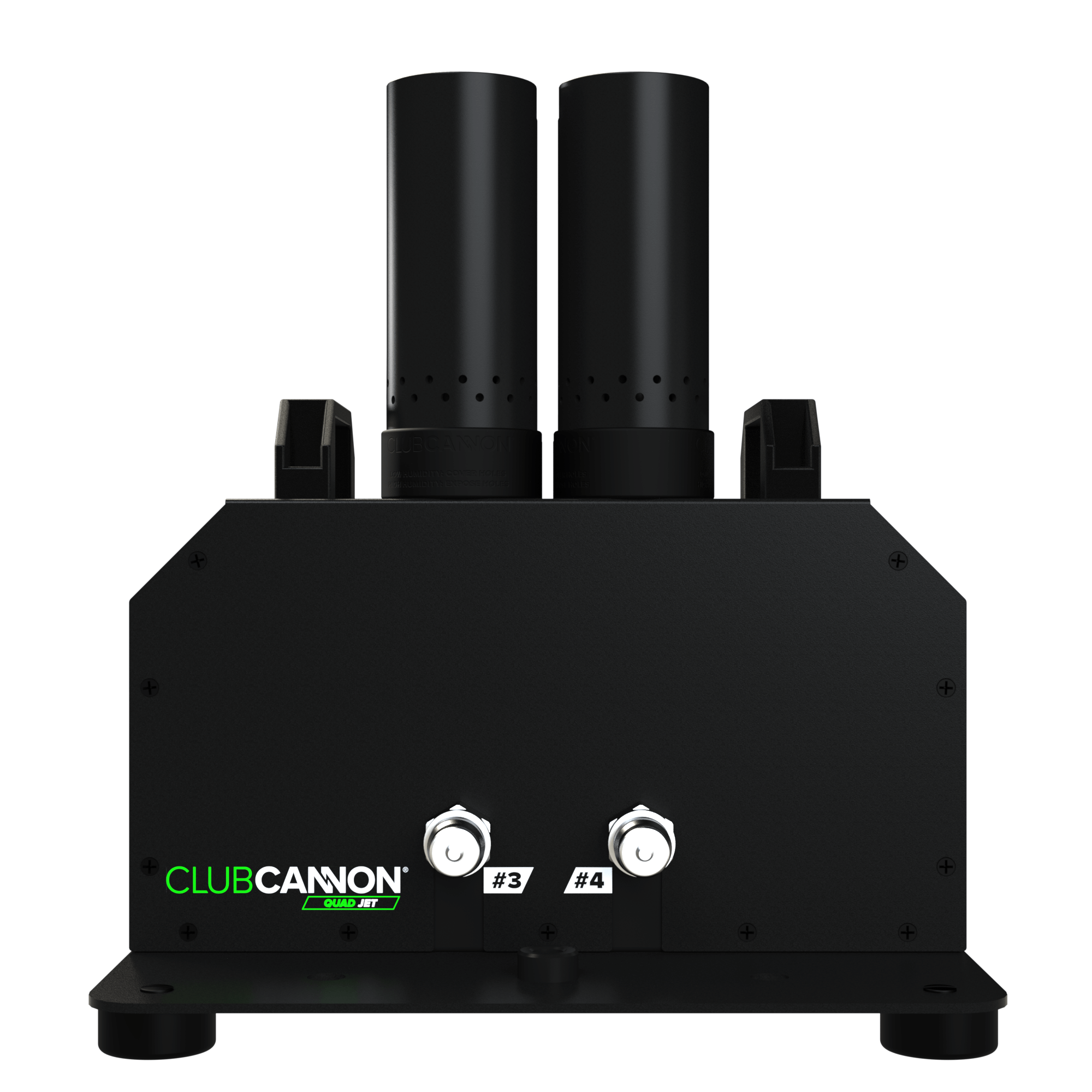

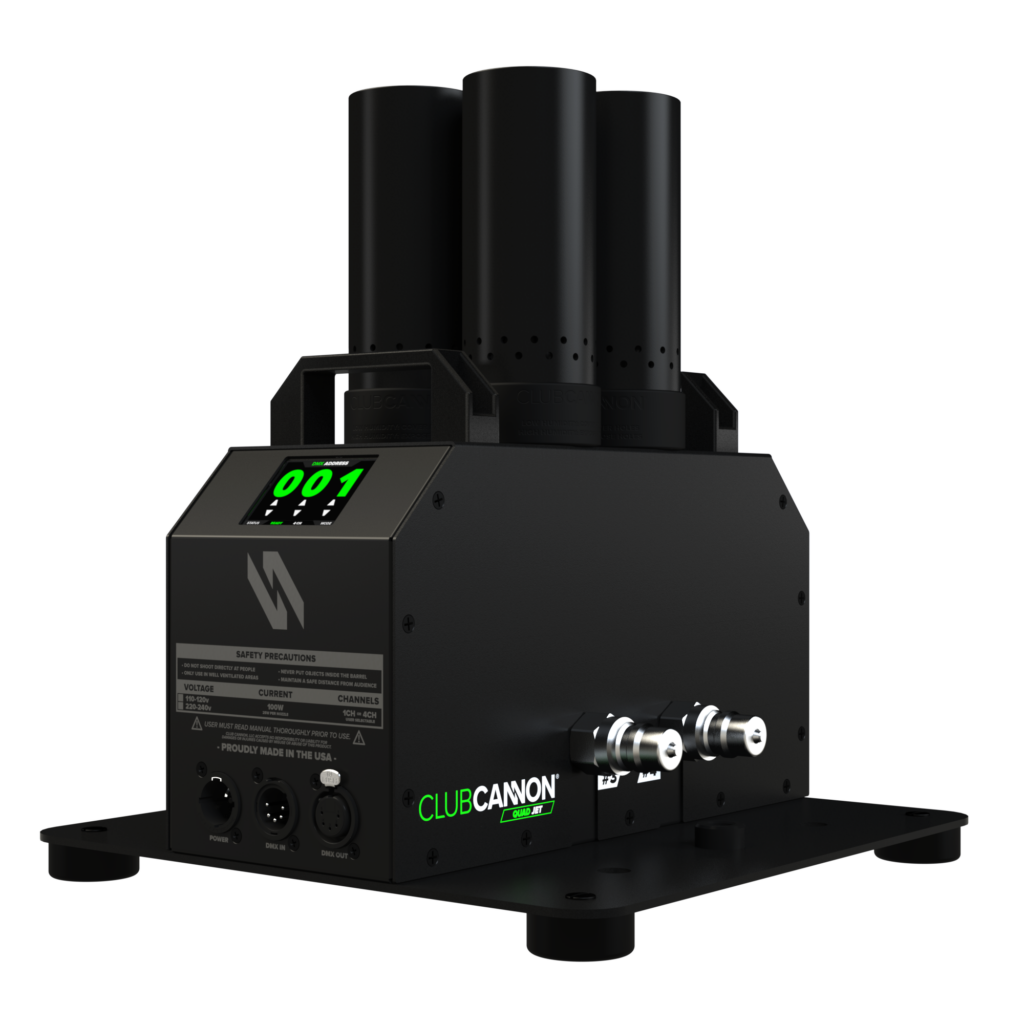

Quad Jet

The Quad Jet is the industry's most powerful Cryo Jet, producing plumes up to 70FT high. With on board DMX control (5 Pin), and a slew of convenience features, this product is ideal for large scale outdoor events.

INCLUDES:

Proudly made in the U.S.A.

Datasheet

$1

-

Download Manual
$1

Control at your Fingertips.

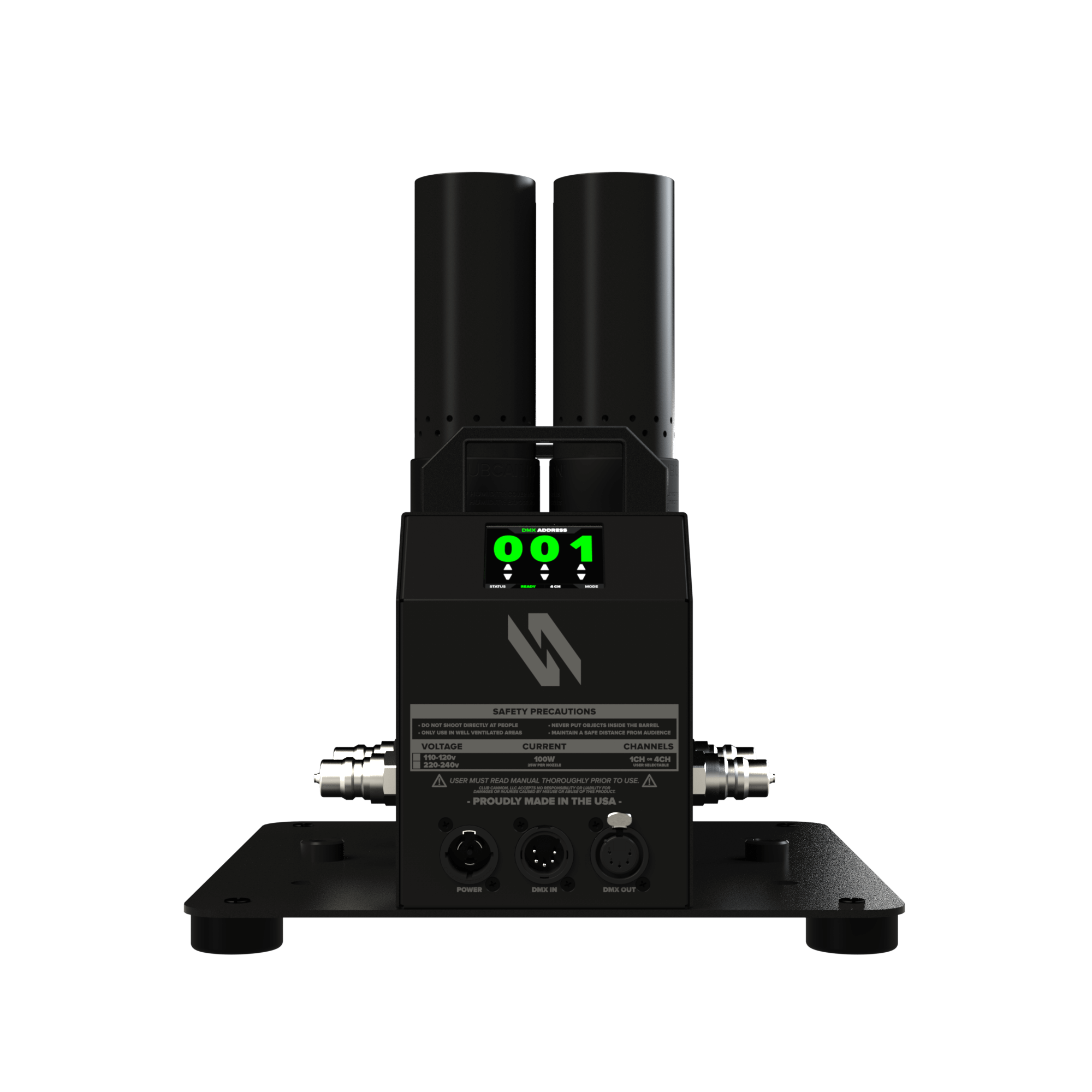

The first ever Cryo Jet with a touch screen interface, allowing quick access to DMX addressing, mode switching, and the convenient "purge lines" feature. The screen auto dims after being idle for 30 seconds, helping disguise the fixture while in use. A flashing screen appears during RDM identification to indicate it's identify state. Additionally, the screen will pulse slowly with red address digits when a DMX signal is not present.

The Most Powerful CO2 Jet. Ever.

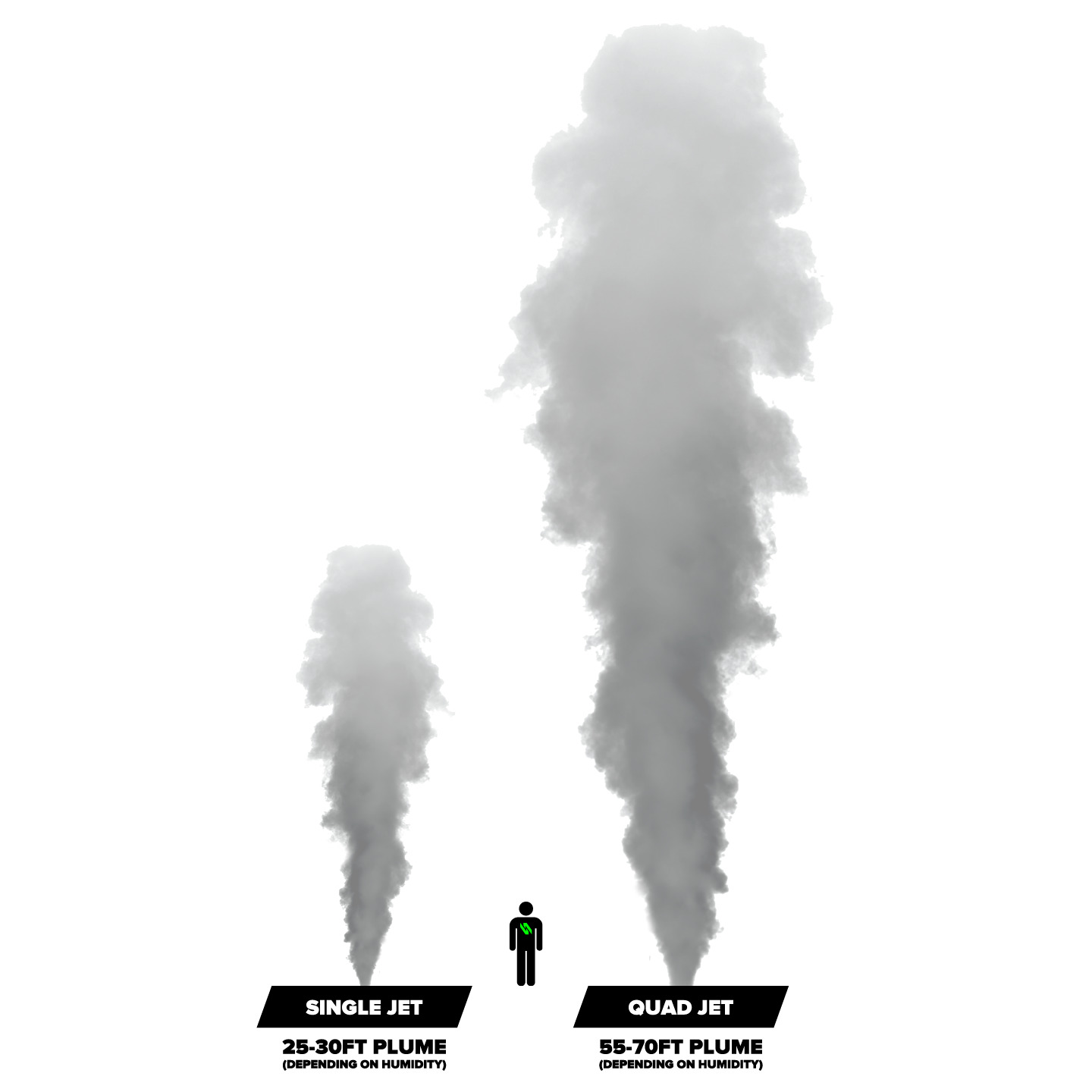

We've spent years perfecting our CO2 products, and the Quad Jet is no exception. With the industry's largest output, the Quad Jet is essential for large scale productions. The Quad Jet was specifically designed for Arenas, Touring, Festivals and Sports Entrances. The output can reach up to 70FT high, dwarfing traditional CO2 Jets (and humans).

Features & Specifications

Take a look at the product description below. If you still have questions, feel free to visit our FAQ page, or reach out to us.

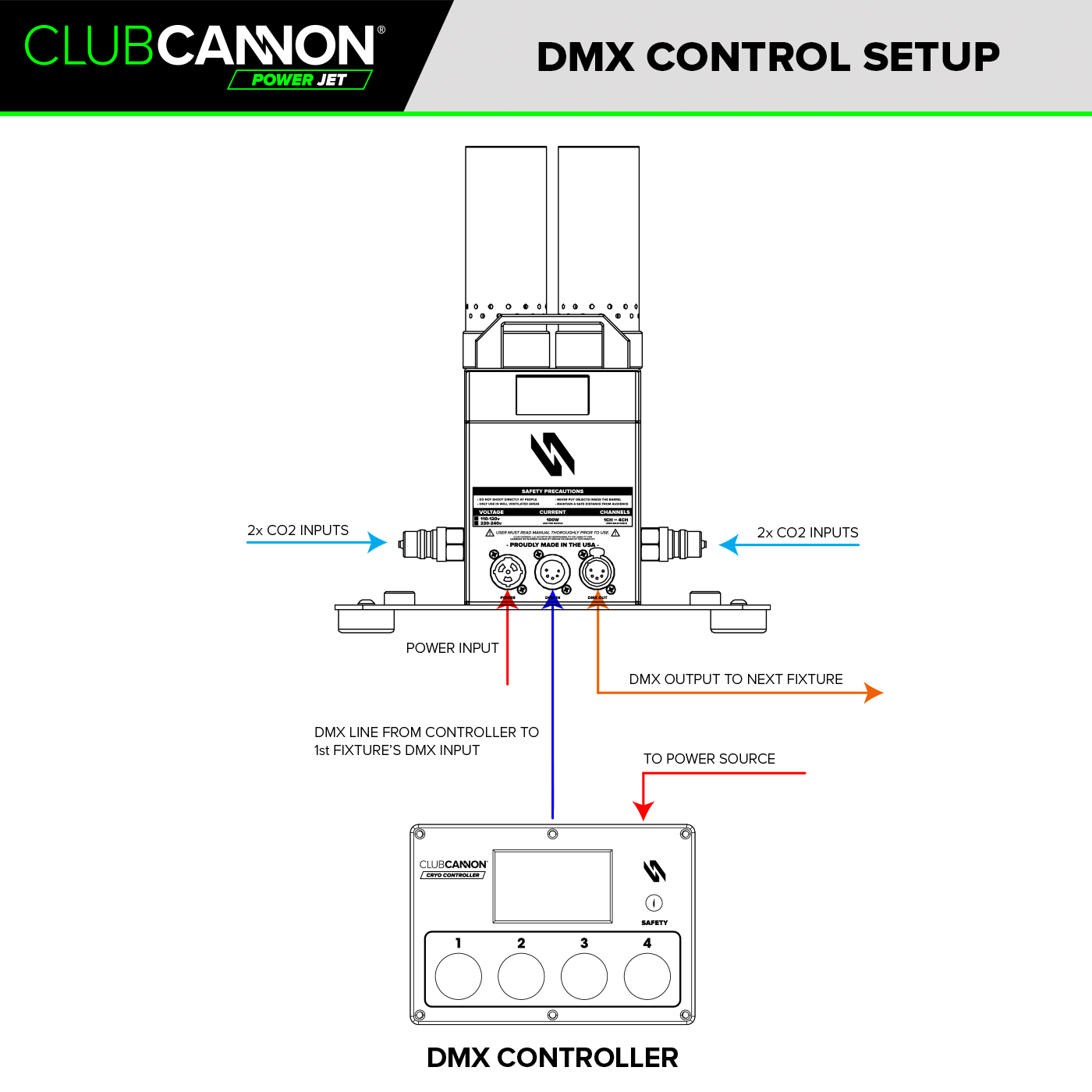

DMX CONTROL

Our custom DMX interface makes operation simple. Set your address fast, with the quick addressing feature. Each DMX digit is controlled individually. No more scrolling through 512 channels to set your address. RDM addressing as well!

MOUNTING OPTIONS

The  base plate is designed to keep the jet in place while in use. However the base is equipped with 2x 1/2-13 press fit nuts for easy clamp attachment, allowing the fixture to be hung from trussing.

SECURE

The locking Neutrik True1 power cords make transportation and setup safe & easy. Water and dust resistant, with IP65 certification when mated.

PURGE LINES FEATURE

One of the best features of the Quad Jet is Purge Lines. This feature can be used as a convenience feature at the end of a show. To use this feature,  disconnect DMX from the QuadJet & follow the instructions displayed on the touch screen.

CO2 REQUIREMENTS

The Quad Jet requires at least 2 CO2 tanks to operate. We recommend using a dedicated tank for each input for best performance. User can also elect to use the Quad Jet as a manifold; triggering 1 channel at a time. This will produce the same effect as a standard 1 nozzle CO2 Jet. As each tank depletes, user can switch to triggering the next channel. This essentially makes the QuadJet a 4 tank manifold.

FEATURES

  • Touch Screen DMX interface
  • 5 pin DMX in & out
  • Neutrik True1 input
  • Quick connect CO2 input
  • v4 barrel With integrated silencer
  • Integrated 1/2″ nuts for truss clamps
  • Purge Lines feature for clearing pressure

PROUDLY MADE IN THE U.S.A.

PLEASE NOTE: A Siphon CO2 Tank is required for the Club Cannon Quad Jet to operate properly. More info about CO2 is listed below.




The Club Cannon can be used with any Siphon CO2 Tank (Sometime referred to as a Siphon Tube or Dip Tank). The Club Cannon will not operate properly with a standard CO2 tank, so you must be sure you are using a Siphon Tank.

CO2 is readily available from any local gas or welding supplier. We recommend using a 20lb or 50lb tank with your Club Cannon. The larger the tank, the more you can use you Club Cannon. You will get approximately 1-2 seconds of spray for each pound of your tanks capacity. If you have questions about getting a CO2 tank, or need advice on a supplier, feel free to email us: info@clubcannon.com

Common suppliers of CO2 Tanks are PRAXAIR and AIRGAS. Both companies have branches nationwide. Use the links below to find a supplier near you.

Use THIS LINK to find the nearest PRAXAIR location.

Use THIS LINK to find the nearest AIRGAS location.
